View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

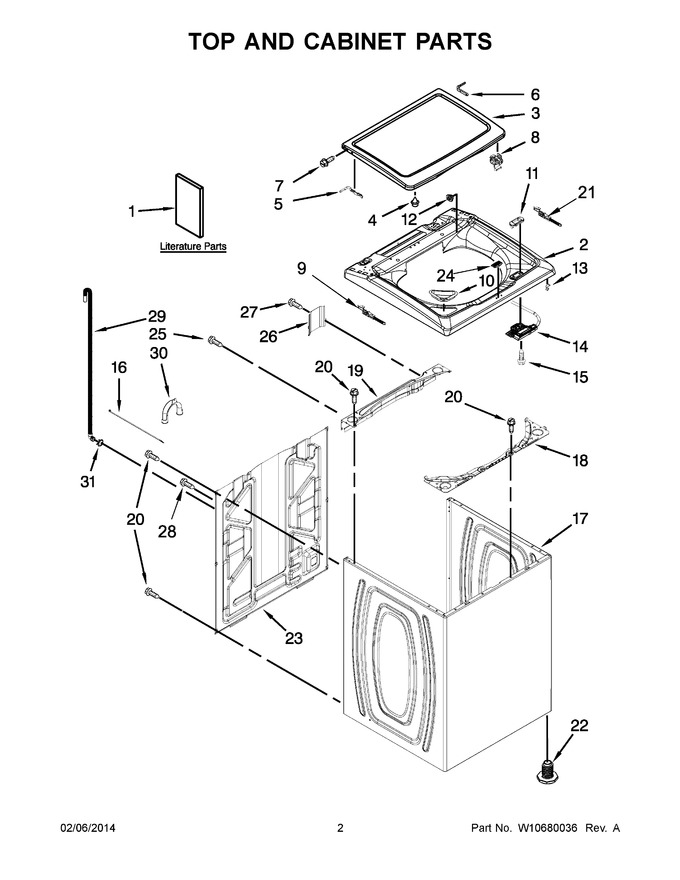

02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10658637 | Installation Instructions |
|
- | |||||
| 1 | W10658022 | Energy Guide |
|
- | |||||
| 1 | W10468342 | Tech Sheet |
|
- | |||||
| 1 | W10655233 | Owners Manual |
|
- | |||||
| 2 | W10238290 | Top (white) |
|
$ 145.90 | |||||
| 3 | WPW10427124 | Lid And Bumper Assembly (white) (Replaces: W10427124) |
|
$ 430.63 | |||||
| 4 | WP9724509 | Bumper, Lid (Replaces: 9724509) |
|
Immediately | $ 8.33 | ||||
| 5 | WP8563965 | Hinge, Wire (left) (Replaces: 8563965) |
|
Immediately | $ 30.91 | ||||
| 6 | WP8572974 | Hinge, Wire (right) (Replaces: 8572974) |
|
Immediately | $ 30.50 | ||||
| 7 | W11404293 | Screw (Replaces: W10339706) |
|
Immediately | $ 14.74 | ||||
| 8 | WPW10239968 | Strike, Lid Lock (white) (Replaces: W10239968) |
|
$ 81.57 | |||||
| 9 | W10270398 | Hinge, Lid (left) |
|
$ 135.85 | |||||
| 10 | W10854969 | Bezel, Bleach Dispenser (white) (Replaces: W10240977) |
|
$ 109.90 | |||||
| 11 | WPW10392041 | Bezel, Lid Lock (white) (Replaces: W10392041) |
|
Immediately | $ 8.00 | ||||
| 12 | W10293653 | Bearing, Lid Hinge (left Hand) |
|
$ 17.47 | |||||
| 12 | W10293293 | Bearing, Lid Hinge (right Hand) |
|
$ 17.47 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 14 | W10404050 | Latch, Lid Lock Assembly (Replaces: W10238287) |
|
Immediately | $ 81.88 | ||||
| 15 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 481.79 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W10215098) |
|
$ 79.79 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 21 | W10270399 | Hinge, Lid (right) |
|
$ 131.91 | |||||
| 22 | W11213957 | Foot Assembly, Leveling (Replaces: W10556332) |
|
Immediately | $ 14.24 | ||||
| 23 | W11486091 | Panel, Rear (Replaces: W10250884) |
|
Immediately | $ 327.72 | ||||
| 24 | W10492808 | Badge |
|
$ 59.82 | |||||
| 25 | WP489128 | Screw (Replaces: W10142728) |
|
$ 11.40 | |||||
| 26 | W10676061 | Cover, Harness (Replaces: W10215139) |
|
$ 36.77 | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 28 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 32.07 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 |
