SELECT A DIAGRAM

01 - Cover Sheet

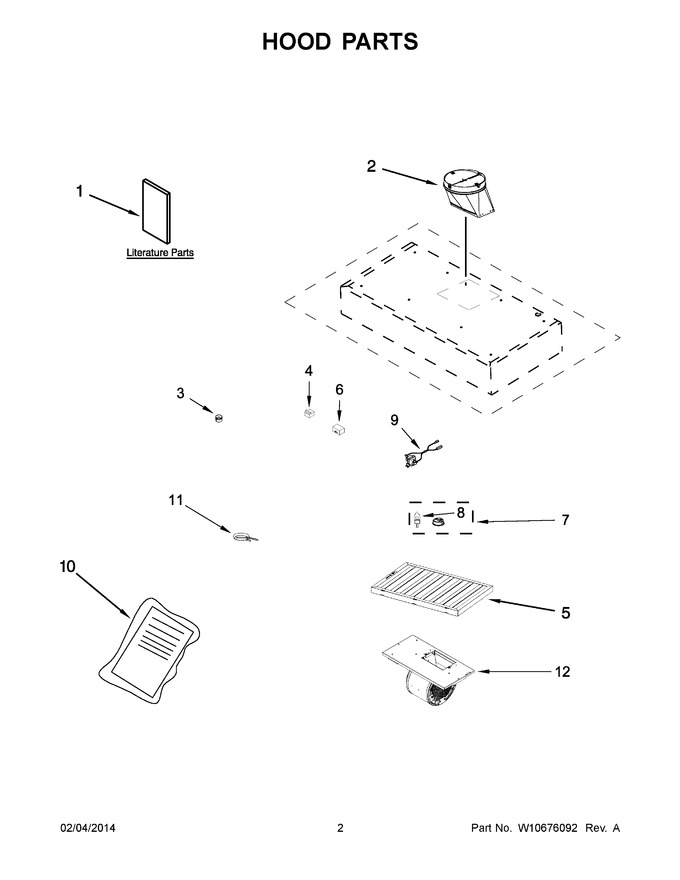

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10635570		Guide, Use & Care		Appelez-nous	-
1	W10649288		Instructions, Extension Panel Kit		Appelez-nous	-
2	W11156393		Assembly, Damper   (Replaces: W10351926)				$ 214.28
3	WPW10294009		Knob   (Replaces: W10294009)				$ 72.22
4	W10293968		Switch, Light				$ 128.15
5	W10351892		Filter, Grease				$ 269.64
6	W10293967		Switch, Fan				$ 136.67
7	WPW10562734		Assembly, Light Puck   (Replaces: W10562734)				$ 107.29
8	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
9	W10651064		Switch, Thermo				$ 222.55
10	W10651062		Hardware, Install		Appelez-nous	-
11	W10427011		Filter, Noise		Appelez-nous	-
12	N/P		Not Included With Unit, Service Only Replacement Motor ( See Accessories )		Appelez-nous	-
NI	N/P		Accessory Parts, Blower Motor System ( 1 System Is Required ) 600 Cfm In-line Blower Motor System Order Model Number Uxi		Appelez-nous	-
NI	W11636054		Accessory Parts, Blower Motor System ( Service Only ) 1200 Cfm In-line Blower Motor System Order Model Number Uxi1200dys   (Replaces: W10294006)				$ 827.59
NI	W11499036		Accessory Parts, Blower Motor System ( Service Only ) 10`` (25.4 Cm) Round Make-up Air System Order Part Number W10446917   (Replaces: W10294026)			Immediately	$ 874.19

    View Diagram in Separate Window       Print Part List
