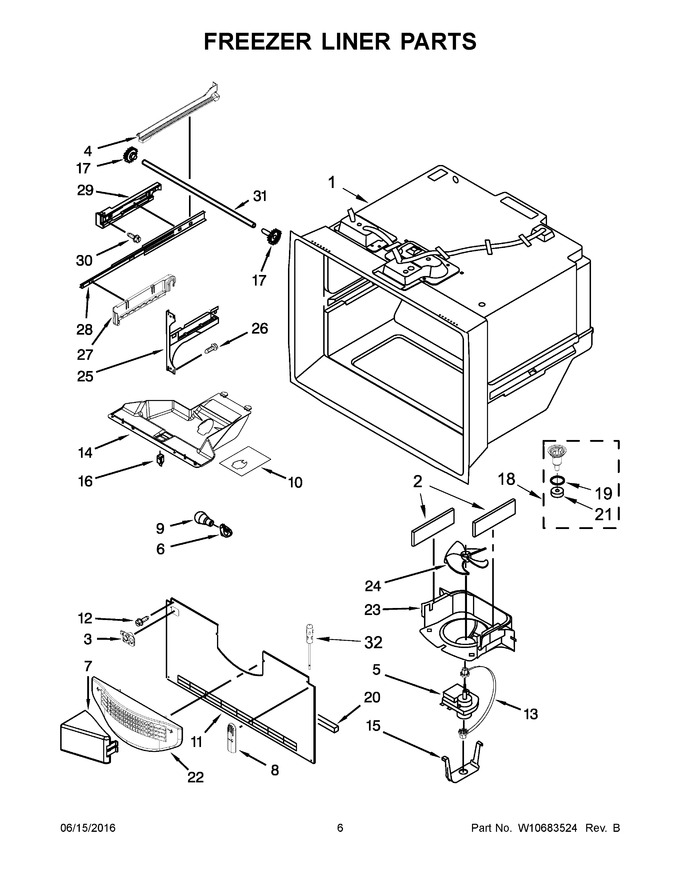

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 3 | W11448709 | Guide, Fill Tube (Replaces: 12932103) |
|
$ 25.87 | |||||
| 4 | W10516605 | Rack, Side (left Hand) |
|
$ 118.25 | |||||
| 5 | W11024089 | Motor, Evaporator (Replaces: 13062901) |
|
Immediately | $ 58.74 | ||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 13.87 | ||||
| 7 | W10157765 | Diverter, Air |
|
$ 92.85 | |||||
| 8 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 9 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 43.24 | ||||
| 10 | W11469652 | Foil, Housing (Replaces: W10277466) |
|
$ 23.29 | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: W10308416) |
|
$ 94.02 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 8.31 | |||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 134.40 | |||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 17 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 18 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 51.50 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 20 | W11159728 | Gasket (Replaces: A3189396) |
|
Immediately | $ 28.86 | ||||
| 21 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evaporator Fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | WPW10330994 | Bracket, Door (left Hand) (Replaces: W10330994) |
|
Immediately | $ 169.02 | ||||
| 26 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 27 | WPW10281115 | Cradle, Basket (left Hand) (Replaces: W10281115) |
|
$ 82.55 | |||||
| 28 | W11658403 | Slide, Drawer (Replaces: 13055901) |
|
Immediately | $ 225.25 | ||||
| 29 | WPW10284692 | Adapter, Slide (left Hand) (Replaces: W10284692) |
|
$ 125.56 | |||||
| 30 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 31 | W11028221 | Shaft, Rack (Replaces: W10802332) |
|
$ 33.24 | |||||
| 32 | W10316760 | Thermistor (Replaces: 12791419SP) |
|
Immediately | $ 72.91 | ||||
| 25A | WPW10330995 | Bracket, Door (right Hand) (Replaces: W10330995) |
|
Immediately | $ 340.61 | ||||
| 27A | WPW10281116 | Cradle, Basket (right Hand) (Replaces: W10281116) |
|
$ 83.35 | |||||
| 29A | WPW10284693 | Adapter, Slide (right Hand) (Replaces: W10284693) |
|
$ 125.41 | |||||
| 4A | W10516604 | Rack, Side (right Hand) |
|
$ 118.23 |
