SELECT A DIAGRAM

01 - Cover Sheet

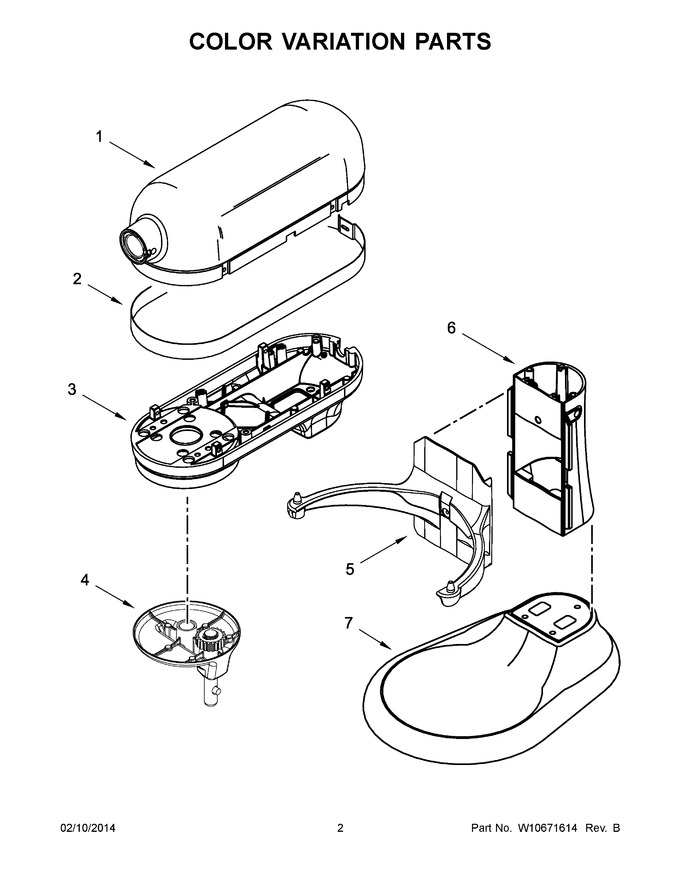

02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
1	9705300		Motor Housing (empire Red)				$ 88.20
1	W11681929		Motor Housing (almond Creme)   (Replaces: 9705298)		Appelez-nous	-
1	WPW10403016		Motor Housing (candy Apple)   (Replaces: W10403016)				$ 65.02
1	W10454050		Motor Housing (frosted Pearl)		Appelez-nous	-
2	W10668069		Trim Band (dark Platinum)		Appelez-nous	-
2	W11123129		Cap, Attachment Hub, Hinged   (Replaces: W10394928)				$ 19.69
3	W10410014		Lower Gearcase (empire Red)   (Replaces: W10410011)				$ 66.24
3	W10668599		Lower Gearcase (almond Creme)   (Replaces: W10668598)		Appelez-nous	-
3	W10403006		Lower Gearcase (candy Apple)   (Replaces: W10403004)				$ 65.91
3	W10454060		Lower Gearcase (frosted Pearl)   (Replaces: W10454059)		Appelez-nous	-
3	N/P		Trim Band (refer To Color Variation Parts Page)		Appelez-nous	-
4	WPW10419426		Planetary (empire Red)   (Replaces: W10419442)				$ 66.18
4	W10880133		Planetary (almond Creme)   (Replaces: W10668601)		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
4	WPW10403008		Planetary (candy Apple)   (Replaces: W10419440)				$ 64.97
4	W10452343		Planetary (frosted Pearl)		Appelez-nous	-
5	9705360		Bowl Support And Pins (empire Red)		Appelez-nous	-
5	WPW10402998		Bowl Support And Pins (candy Apple)   (Replaces: W10402998)				$ 98.26
5	9705358		Bowl Support And Pins (almond Creme)		Appelez-nous	-
5	WPW10305968		Holder, Control   (Replaces: W10305968)				$ 4.33
5	W10448659		Bowl Support And Pins (frosted Pearl)		Appelez-nous	-
6	WPW10450997		Column And Pins (candy Apple)   (Replaces: W10450997)				$ 103.25
6	N/P		Lower Gearcase (refer To Color Variation Parts Page)		Appelez-nous	-
6	WPW10444018		Column And Pins (frosted Pearl)   (Replaces: W10444018)				$ 105.84
6	WPW10451578		Column And Pins (empire Red)   (Replaces: W10451578)				$ 98.88
6	W10668596		Column And Pins (almond Creme)		Appelez-nous	-
7	WPW10402986		Base And Foot Assembly (candy Apple)   (Replaces: W10402986)				$ 111.33
7	W11672227		Base And Foot Assembly (almond Creme)   (Replaces: 9705346)		Appelez-nous	-
7	9705348		Base And Foot Assembly (empire Red)		Appelez-nous	-
7	W10448638		Base And Foot Assembly (frosted Pearl)		Appelez-nous	-
7	W10234493		Gear, Ring And Plate Assembly				$ 8.95
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	WPW10517943		Motor, 230 Volt Assembly, With Transmission   (Replaces: W10517943)				$ 208.57
11	W10913677		Screw   (Replaces: 3400200)				$ 4.64
12	W11188060		Control Assembly, 230 Volt   (Replaces: W10487699)				$ 129.53
13	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29
14	W11678955		Cord, Power (white (european))   (Replaces: W10459114)		Appelez-nous	-
14	W11210993		Cord, Power (black (european))   (Replaces: W10307850)		Appelez-nous	-
14	W10419451		Cord, Power (black (britain))		Appelez-nous	-
14	W10459179		Cord, Power (white (britain))		Appelez-nous	-
15	N/P		Planetary Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
16	WP9703438		Ring, Retaining   (Replaces: 9703438)			Immediately	$ 4.60
17	WP9706090		Washer   (Replaces: 9706090)				$ 5.04
18	WPW10234643		Gear, Pinion   (Replaces: W10234643)				$ 5.61
19	WP9707223		Pin, Retaining   (Replaces: 9707223)			Immediately	$ 5.08
20	W10854966		Washer   (Replaces: 8533910)				$ 4.94
21	WP9708191		Shaft, Agitator   (Replaces: W10419438)			Immediately	$ 17.84
22	WP9703680		Clip, Retaining   (Replaces: 9703680)			Immediately	$ 4.99
23	WPW10360791		Thumb Screw (black)   (Replaces: W10360791)				$ 10.68
24	W11664709		Pin, Groove   (Replaces: 9704677)			Immediately	$ 6.75
25	W10417201		Clip, Plug		Appelez-nous	-
26	W10447372		Rfi Filter		Appelez-nous	-
