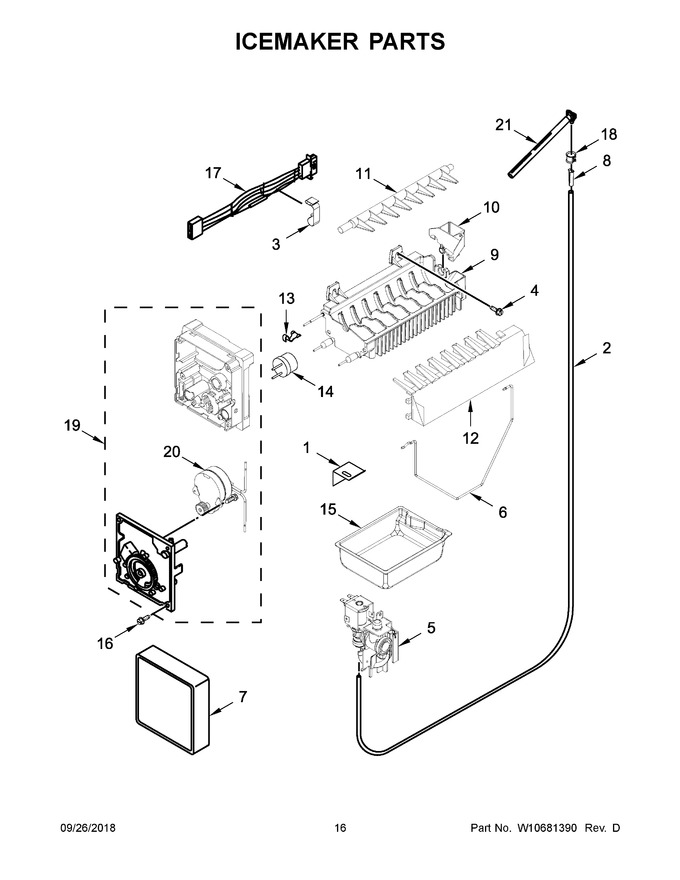

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 97.65 | |||||
| 2 | WPW10449192 | Tube, Plastic (Replaces: W10449192) |
|
$ 122.89 | |||||
| 3 | 10526702 | Clamp, Wire |
|
- | |||||
| 4 | WPW10068250 | Screw (Replaces: W10068250) |
|
$ 4.27 | |||||
| 5 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 130.60 | ||||
| 6 | W11285509 | Arm, Shut Off (Replaces: W11260635) |
|
$ 98.70 | |||||
| 7 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 9 | WPW10300025 | Assembly, Mold And Heater (Replaces: W10300025) |
|
Immediately | $ 201.92 | ||||
| 10 | W10410073 | Cup, Water Fill |
|
$ 84.07 | |||||
| 11 | W10318914 | Ejector |
|
$ 38.08 | |||||
| 12 | W10788834 | Stripper, Ice (Replaces: W10699925) |
|
$ 85.24 | |||||
| 13 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 14 | WP627985 | Thermostat (Replaces: 627985) |
|
$ 114.64 | |||||
| 15 | WPW10171529 | Pan, Ice (Replaces: W10182748) |
|
Immediately | $ 189.55 | ||||
| 16 | W10001240 | Screw |
|
$ 9.22 | |||||
| 17 | W10886932 | Harness, Icemaker Wire (Replaces: W10793621) |
|
Immediately | $ 140.19 | ||||
| 18 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 19 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 159.78 | ||||
| 20 | N/P | Motor (not Available, Order Item #19) |
|
- | |||||
| 21 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 100 | W10884390 | Assembly, Icemaker (complete) (Replaces: W10793298) |
|
Immediately | $ 149.65 |
