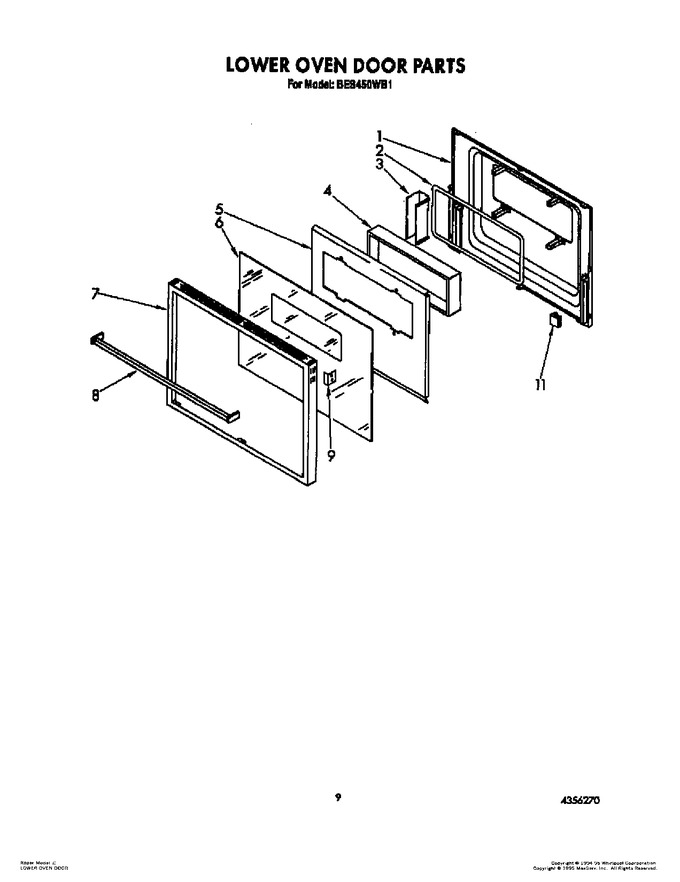

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Component Shelf And Latch
04 - Upper Oven
05 - Lower Oven
06 - Oven Liner
07 - Upper Oven Door
08 - Lower Oven Door
09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3177598 | Liner, Door |
|
- | |||||
| 1 | 3178001 | Screw (2) |
|
- | |||||
| 1 | 4168863 | Screw (6) |
|
- | |||||
| 2 | 3178584 | Seal, Window |
|
- | |||||
| 3 | 3179694 | Spacer, Window |
|
- | |||||
| 4 | 4169572 | Window Pack |
|
- | |||||
| 5 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 5 | 3177719 | Retainer, Insulation |
|
- | |||||
| 6 | 310706 | Clip, Glass (16) |
|
- | |||||
| 6 | 3180637 | Glass, Door |
|
- | |||||
| 7 | 3180635 | Frame, Door |
|
- | |||||
| 8 | 3180654 | Handle, Door |
|
- | |||||
| 8 | 3181924 | Screw (2) |
|
- | |||||
| 9 | 3181850 | Clip (2) |
|
- | |||||
| 11 | 3181723 | Bumper, Door Glass |
|
- |
