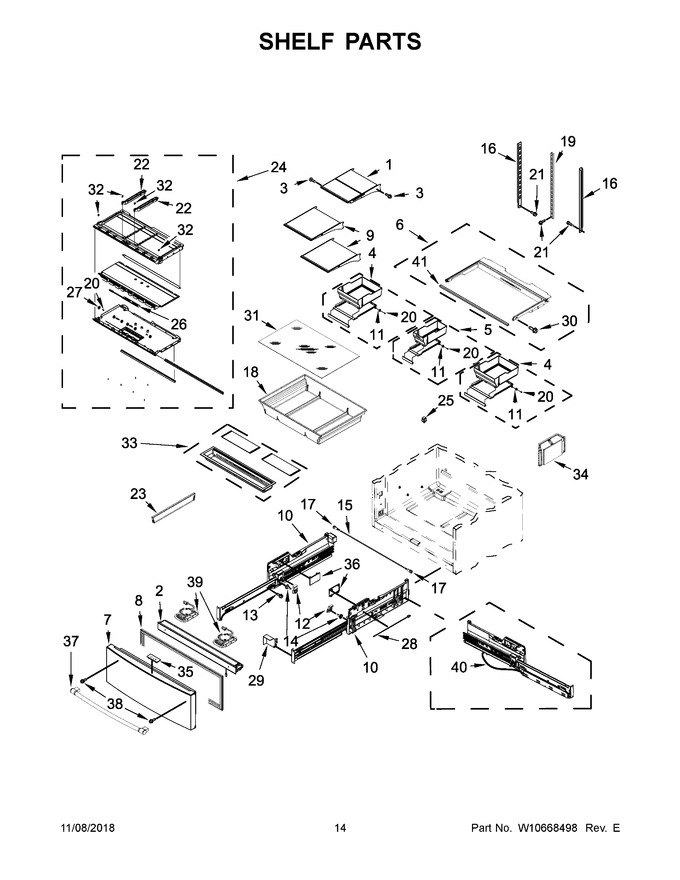

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10649443		Shelf, Tuck   (Replaces: W10649443)				$ 378.97
2	W10698206		Assembly, Secondary Mullion		Appelez-nous	-
3	W11400994		Screw   (Replaces: W10325002)				$ 13.44
4	W10656450		Crisper, Medium				$ 288.14
5	W10656451		Crisper, Small				$ 291.02
6	W11037030		Assembly, Crisper Cover				$ 145.93
7	LW10666164		Door, Pantry (white)   (Replaces: W10666164)		Appelez-nous	-
8	W11627531		Gasket, Pantry (white)   (Replaces: W10587580)				$ 279.88
9	W11114817		Shelf, Fixed Lighted		Appelez-nous	-
10	W11215629		Adapter, Pantry (left Hand)   (Replaces: W11093716)			Immediately	$ 193.62
11	W10788795		Roller   (Replaces: W10530295)				$ 20.60
12	W10284709		Cover, Gear (left Hand)				$ 73.89
13	12991702		Screw				$ 14.93
14	W10277360		Gear, Spur				$ 31.85
15	W10802341		Shaft, Rack		Appelez-nous	-
16	W10719660		Ladder, Side				$ 196.61
17	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 12.09
18	WPW10530656		Pan, Pantry   (Replaces: W10530656)				$ 240.88
19	W10467461		Ladder, Center   (Replaces: W10719661)			Immediately	$ 52.31
20	67006692		Screw   (Replaces: 12991401)				$ 10.79
21	WPW10666373		Screw   (Replaces: W10666373)				$ 20.86
22	W10530296		Guide, Crisper		Appelez-nous	-
23	W11763409		Divider, Large Pantry   (Replaces: W10772797)				$ 58.78
24	W10782690		Assembly, Floor (includes Heater)				$ 264.95
25	W11384469		Switch, Light   (Replaces: W10656773)			Immediately	$ 39.09
26	W10537691		Heater, Pantry				$ 91.16
27	W10788795		Roller   (Replaces: W10530295)				$ 20.60
28	W11168403		Thermistor   (Replaces: W10549991)				$ 86.14
29	W10518378		Cover, Connector		Appelez-nous	-
30	W10854958		Screw   (Replaces: 12990302)				$ 7.90
31	W11038526		Glass, Crisper   (Replaces: W10893770)				$ 263.10
32	12702901		Pad, Glide		Appelez-nous	-
33	W10858273		Bin, Secondary Mullion   (Replaces: W10780178)				$ 253.20
34	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
35	W10646459		Assembly, User Interface (grey)		Appelez-nous	-
36	W10518036		Cover, Side Adapter				$ 22.75
37	WPW10663448		Handle, Door (stainless)   (Replaces: W10663448)				$ 326.92
38	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
39	W11683241		Assembly, Led Light Module   (Replaces: W10637153)			Immediately	$ 271.97
40	W11170612		Harness, Side Adapter   (Replaces: W10512203)			Immediately	$ 82.35
41	W10656444		Support, Crisper Front		Appelez-nous	-
10A	W11093718		Adapter, Pantry (right Hand)		Appelez-nous	-
12A	W10294414		Cover, Gear (right Hand)				$ 83.48
7A	W10666163		Door, Pantry (black)		Appelez-nous	-
7B	LW10666165		Door, Pantry (stainless)   (Replaces: W10666165)				$ 917.26
8A	W10622446		Gasket, Pantry (grey)   (Replaces: W10518365)				$ 355.41
8B	W10622445		Gasket, Pantry (black)   (Replaces: W10545600)				$ 355.54
