01 - Cover Sheet
02 - Cooktop Parts

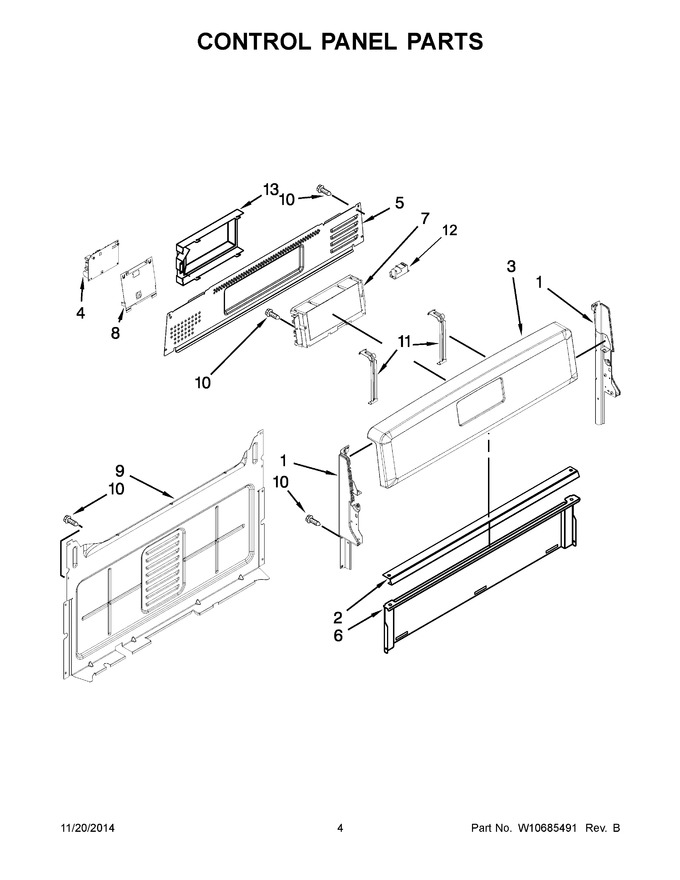

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W10655858 | Console (white) |
|
$ 180.89 | |||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 239.59 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | WPW10655867 | Control, Lcc195 (white) (Replaces: W10655867) |
|
$ 291.67 | |||||
| 8 | W10516463 | Bracket, Dsi |
|
- | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 12 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 13 | W10158780 | Cover, Fan |
|
$ 118.48 | |||||
| 1A | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1B | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1C | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 3A | W10655861 | Console (black) |
|
$ 129.57 | |||||
| 3B | W10655864 | Console (stainless) |
|
$ 135.26 | |||||
| 7A | WPW10655868 | Control, Lcc195 (black) (Replaces: W10655868) |
|
$ 258.81 | |||||
| 7B | W10837276 | Control, Lcc195 (stainless) (Replaces: W10655869) |
|
$ 361.44 |
