SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

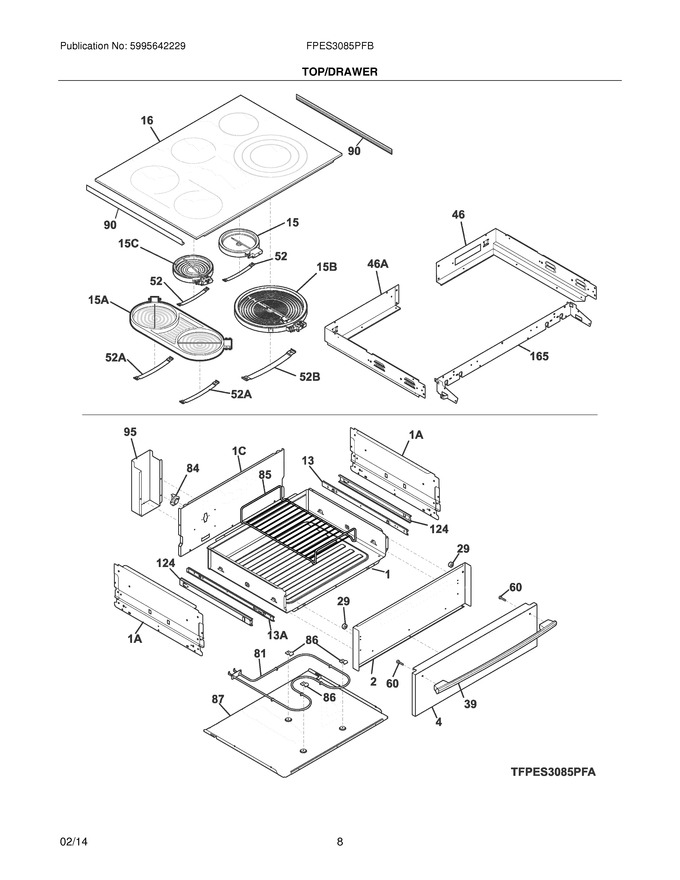

07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304404		Drawer,body Assembly				$ 195.56
2	318303907		Panel,drawer ,black ,inner				$ 124.90
4	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298826)				$ 234.36
13	318259509		Glide,warmer ,inner Rh				$ 26.25
16	139033800		Smoothtop Assembly,glass ,black				$ 519.06
29	318147430		Bumper,(2)				$ 21.06
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 125.42
46	318568200		Box,burner ,rh				$ 23.99
52	318122006		Spring,element Mtg ,small				$ 73.61
60	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 96.90
86	316095800		Clip,hold Down ,(3)				$ 9.93
87	318300102		Panel,warmer Drawer ,lower				$ 118.02
90	318368001		Channel,glass Protector ,(2)				$ 22.98
95	139008400		Shield,wire		Appelez-nous	-
124	316105501		Glide,outer/rh & Lh ,(2)				$ 100.80
165	318913300		Deflector,box ,front				$ 48.67
13A	318259508		Glide,warmer ,inner Lh				$ 27.88
1A	318300003		Panel,warmer Drawer ,side ,(2)				$ 62.37
1C	139022600		Panel,warmer Drawer ,rear		Appelez-nous	-
46A	318568201		Box,burner ,lh				$ 28.93
52A	318122008		Spring,element Mtg ,1800w/3000w				$ 100.89
52B	318122011		Spring,element Mtg ,1200w/1800w				$ 69.04
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 136.51
F15A	807219901		Element,bridge ,1800/2600w			Immediately	$ 343.35
F15B	318297810		Element,surface ,triple ,800/1000/1200 ,6``/8``/11``			Immediately	$ 396.15
F15C	140273621015		Element,surface ,warmer ,100 W   (Replaces: 316289800)				$ 39.74
F81	318255301		Element,warmer Drawer				$ 117.13
F84	318005108		Thermostat			Immediately	$ 90.16
FNI	808158601		Harness,wiring ,surface Units				$ 139.02
NI	318163601		Cleaner-cooktop				$ 0.42
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.37
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 6.30
NI	318591200		Washer,handle ,drawer		Appelez-nous	-
NI	318531701		Spacer,(10)				$ 13.39

    View Diagram in Separate Window       Print Part List
