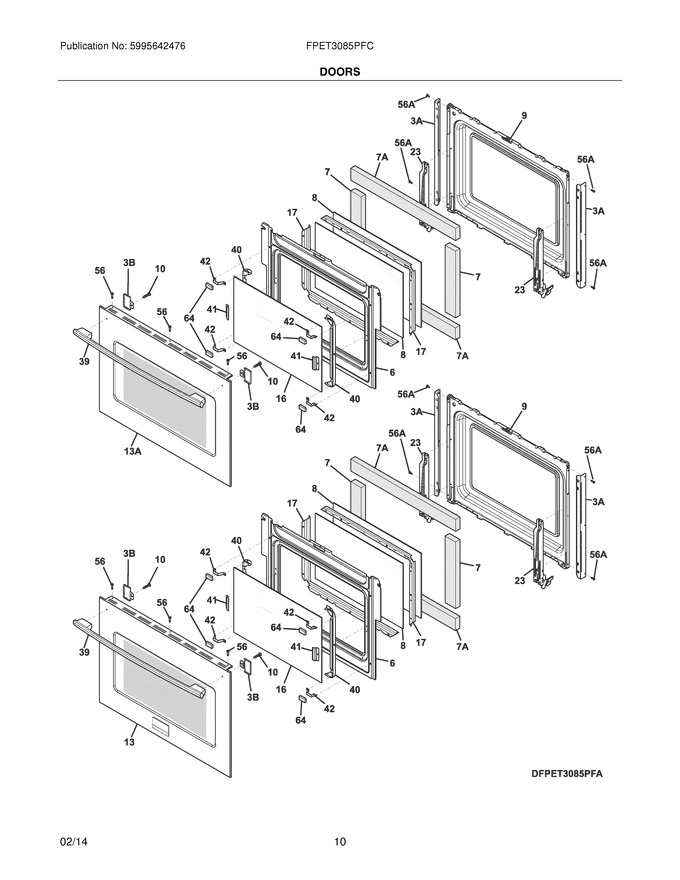

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006903		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door				$ 18.11
8	5304503232		Glass,oven Door ,heat Barrier ,inner ,hrc2   (Replaces: 316117502)				$ 129.94
9	139000411		Liner,oven Door   (Replaces: 139000410)				$ 169.37
10	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
13	808950007		Door Assembly,outer ,stainless ,w/trim & Badge				$ 512.43
16	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 139.03
17	318264731		Spacer,glass ,(2)   (Replaces: 318264712)				$ 80.05
23	316575915		Hinge,oven Door ,lilac ,(2)   (Replaces: 139014301)				$ 184.54
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 125.42
40	318242702		Bracket,glass Holder ,door ,(2)				$ 21.91
41	318370602		Bracket,glass Panel ,(2)				$ 15.17
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 56.46
56	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
64	318165800		Spacer				$ 19.69
13A	139099611		Door Assembly,outer ,steel/glass ,stainless,w/trim				$ 249.22
3A	139014401		Trim,oven Door ,black ,side ,(2) ,vented				$ 36.24
3B	318262104		Cover,rear Door ,black ,(2)				$ 27.77
56A	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 15.75
7A	318372016		Insulation,door				$ 19.69
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 15.75
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
