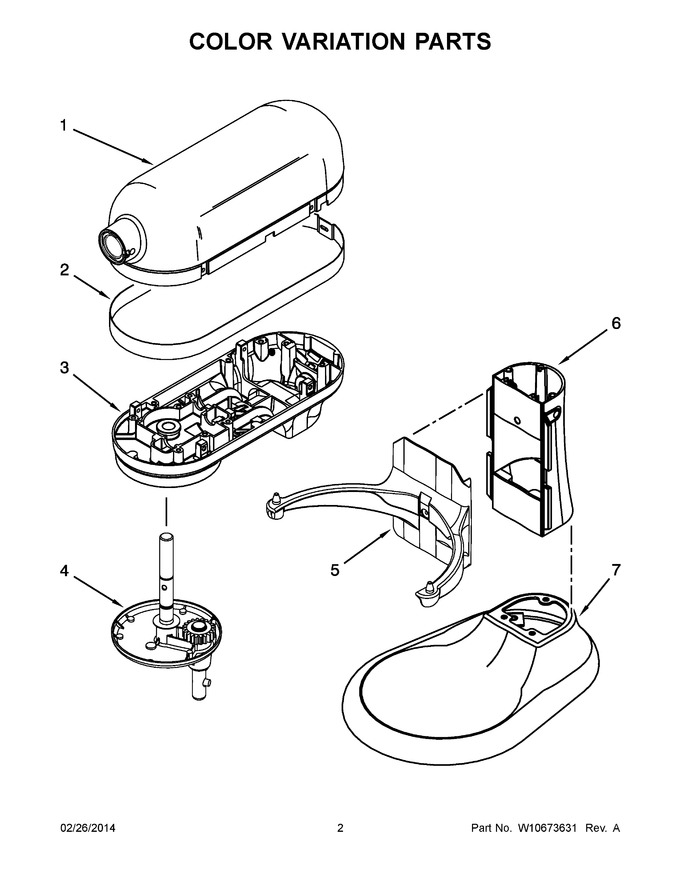

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1 | WPW10403016 | Motor Housing (candy Apple) (Replaces: W10403016) |
|
$ 65.02 | |||||
| 1 | W10520271 | Motor Housing (sugar Pearl) |
|
- | |||||
| 2 | W10684315 | Trim Band (black) |
|
- | |||||
| 3 | 9706311 | Lower Gearcase (onyx Black) |
|
$ 92.72 | |||||
| 3 | W10681055 | Lower Gearcase (candy Apple) |
|
- | |||||
| 3 | W10681062 | Lower Gearcase (sugar Pearl) |
|
- | |||||
| 4 | WP9708176 | Planetary (onyx Black) (Replaces: 9708176) |
|
Immediately | $ 82.60 | ||||
| 4 | W10681058 | Planetary (candy Apple) |
|
- | |||||
| 4 | W10681065 | Planetary (sugar Pearl) |
|
- | |||||
| 5 | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 5 | WPW10402998 | Bowl Support And Pins (candy Apple) (Replaces: W10402998) |
|
$ 98.26 | |||||
| 5 | W10520248 | Bowl Support And Pins (sugar Pearl) |
|
- | |||||
| 6 | 9705320 | Column And Pins (onyx Black) |
|
- | |||||
| 6 | WPW10402992 | Column And Pins (candy Apple) (Replaces: W10402992) |
|
$ 109.87 | |||||
| 6 | W10520205 | Column And Pins (sugar Pearl) |
|
- | |||||
| 7 | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 7 | WPW10402986 | Base & Foot Assembly (candy Apple) (Replaces: W10402986) |
|
$ 111.33 | |||||
| 7 | W10520258 | Base & Foot Assembly (sugar Pearl) |
|
- |
