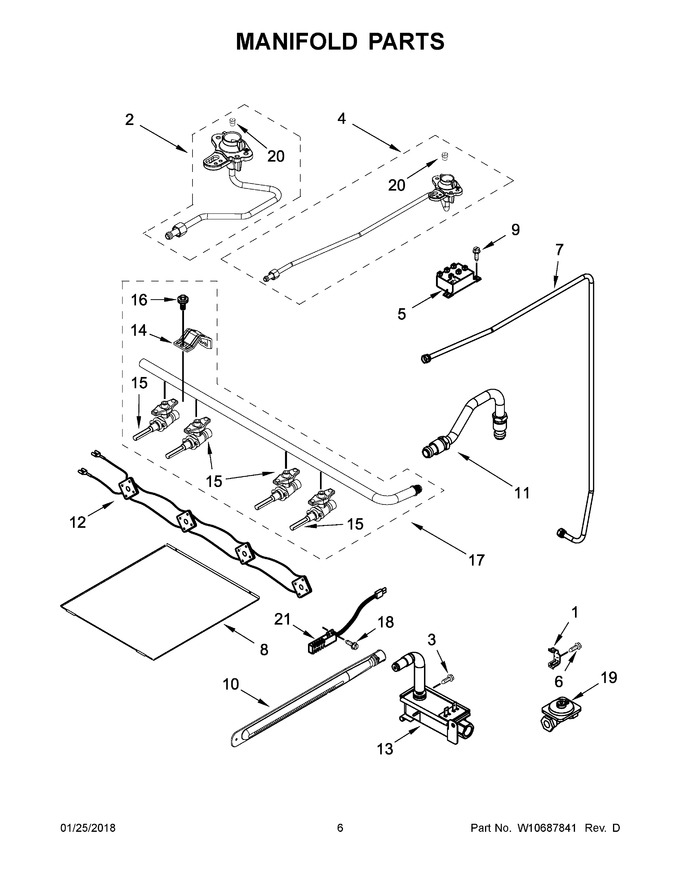

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98007410		Bracket, Regulator		Appelez-nous	-
2	W11028738		Assembly, Tubing (left Front)   (Replaces: W10514425)				$ 79.74
3	98013634		Screw		Appelez-nous	-
4	W11162117		Assembly, Tubing (left Rear)   (Replaces: W10514428)				$ 111.86
5	W11590249		Module, Spark   (Replaces: 6610341)				$ 24.51
6	WP98007225		Screw   (Replaces: 98007225)				$ 7.30
7	W11628651		Tubing, Manifold To Regulator   (Replaces: W10619922)		Appelez-nous	-
8	W11688713		Spread, Flame (bake)   (Replaces: W10670196)		Appelez-nous	-
9	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 8.18
10	W11220387		Burner, Oven   (Replaces: W10650358)				$ 198.58
11	W11684515		Tubing (regulator To Oven Valve)   (Replaces: W10512963)		Appelez-nous	-
12	WPW10548355		Harness, Switch   (Replaces: W10548355)				$ 84.06
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 165.35
14	W10574737		Bracket, Valve		Appelez-nous	-
15	W10814916		Valve, Saddle (left Front & Right Front)   (Replaces: W10615569)				$ 230.51
16	98017517		Screw		Appelez-nous	-
17	W10512763		Assembly, Manifold		Appelez-nous	-
18	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
19	W11346659		Regulator   (Replaces: W10633327)				$ 279.18
20	WPW10347414		Orifice (15k) (left Front & Right Front)   (Replaces: W10347414)				$ 90.50
21	W10918546		Igniter, Hot Surface   (Replaces: 98005652)			Immediately	$ 61.55
15A	W10861716		Valve, Saddle (left Rear)   (Replaces: W10615568)		Appelez-nous	-
15B	W11105201		Valve, Saddle (right Rear)   (Replaces: W10615567)		Appelez-nous	-
20A	WPW10170508		Orifice, Natural (9.5k) (left Rear)   (Replaces: W10170508)				$ 95.21
20B	WPW10170506		Orifice, Natural (5k) (right Rear)   (Replaces: W10170506)				$ 97.85
2A	W11050487		Assembly, Tubing (right Front)   (Replaces: W10514426)				$ 108.08
4A	W11167099		Assembly, Tubing (right Rear)   (Replaces: W10514424)				$ 31.16
NI	W10623833		Cable, Spark (natural)		Appelez-nous	-
NI	W10622750		Cable, Spark (black)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10619558		Kit, Lp Conversion   (Replaces: W10619558)				$ 17.96
