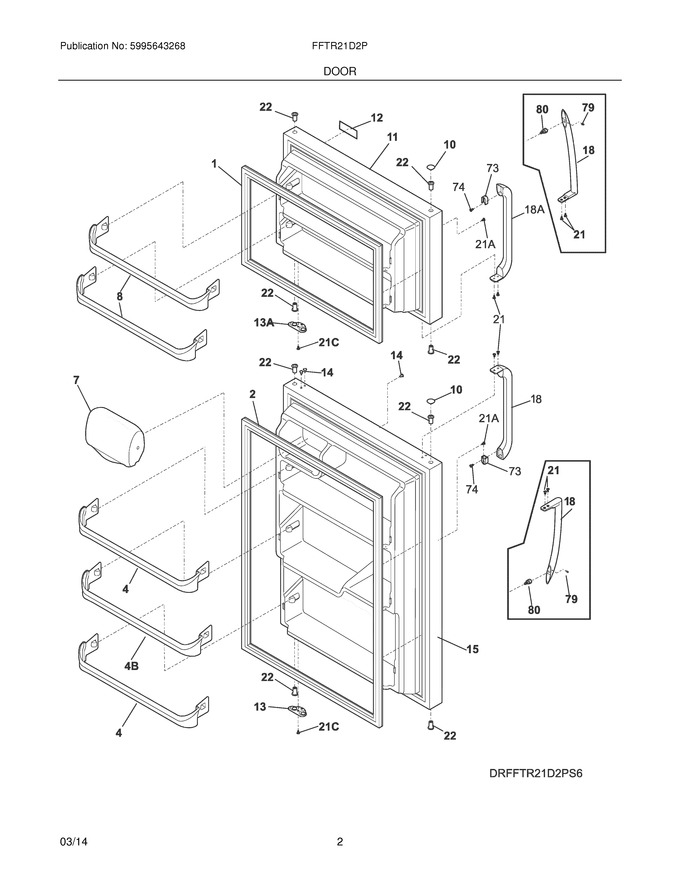

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240534901		Rack-door			Immediately	$ 52.25
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 40.45
8	240534801		Rack-door			Immediately	$ 55.13
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 21.06
11	241798401		Door-frzr,white ,complete Assy				$ 516.17
12	242016301		Nameplate,frigidaire				$ 4.73
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 16.85
14	240494001		Plug-button,white ,cab Liner Holes			Immediately	$ 20.22
15	241798501		Door-refr,white ,complete Assy			Immediately	$ 603.65
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 8.43
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 15.75
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 50.40
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.88
13A	240312414		Door Stop,white ,frzr				$ 21.26
18A	218428101		Handle-door, White, W/block & Screw			Immediately	$ 25.26
21A	240521303		Screw,no.10-16 X 1/2			Immediately	$ 33.55
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
4B	240534701		Rack-door,4b			Immediately	$ 32.00
F1	241872505		Gasket-frzr Door,white ,magnetic   (Replaces: 242193205)				$ 219.04
F2	242193213		Gasket-refr Door,white ,magnetic			Immediately	$ 211.36
