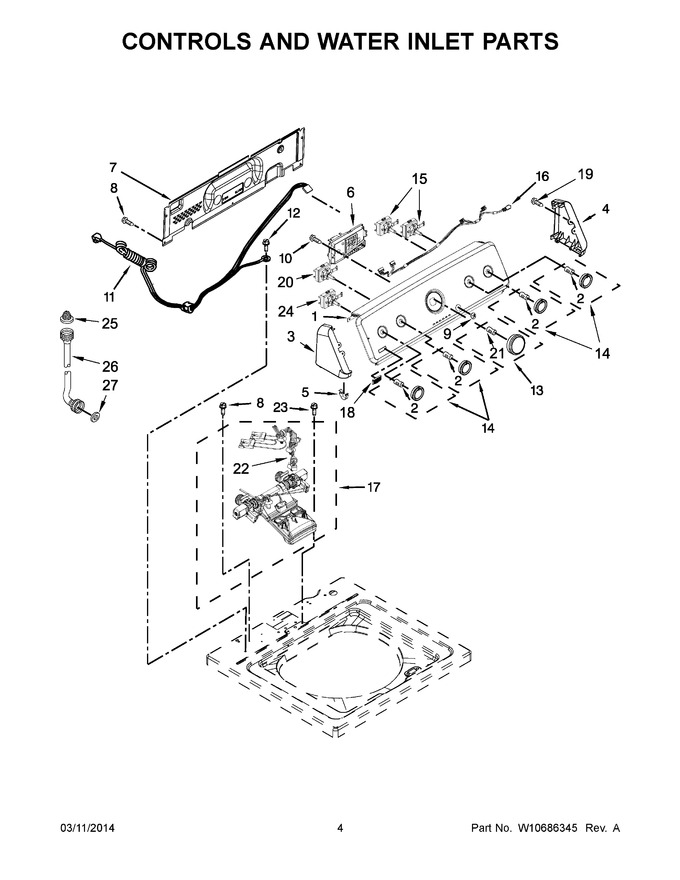

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10643290 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10193824 | End Cap (left) (white) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 4 | WPW10193821 | End Cap (right) (white) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 6 | W10723778 | Control Unit Assembly, Machine And Motor (Replaces: W10658745) |
|
- | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 360.43 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | W11164083 | Push Button, Start (Replaces: W10584360) |
|
$ 74.87 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 163.41 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W11837899 | Assembly, Timer Knob (grey) (Replaces: W10558463) |
|
Immediately | $ 18.83 | ||||
| 14 | W11837893 | Assembly, Control Knob (grey) (Replaces: W10562155) |
|
$ 18.83 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 16 | W10579238 | Harness, Upper |
|
$ 27.35 | |||||
| 17 | WPW10683653 | Inlet Assembly, Water (Replaces: W10472844) |
|
$ 216.49 | |||||
| 18 | W10199708 | Badge |
|
$ 53.28 | |||||
| 19 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 20 | WPW10285517 | Switch, Rotary Encoder (3 Position) (Replaces: W10285517) |
|
$ 135.86 | |||||
| 21 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 22 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 194.92 | |||||
| 23 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 158.12 | ||||
| 25 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.69 | ||||
| 26 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10194211) |
|
Immediately | $ 24.09 | ||||
| 26 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 27 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 8.16 |
