SELECT A DIAGRAM

01 - Cover Sheet

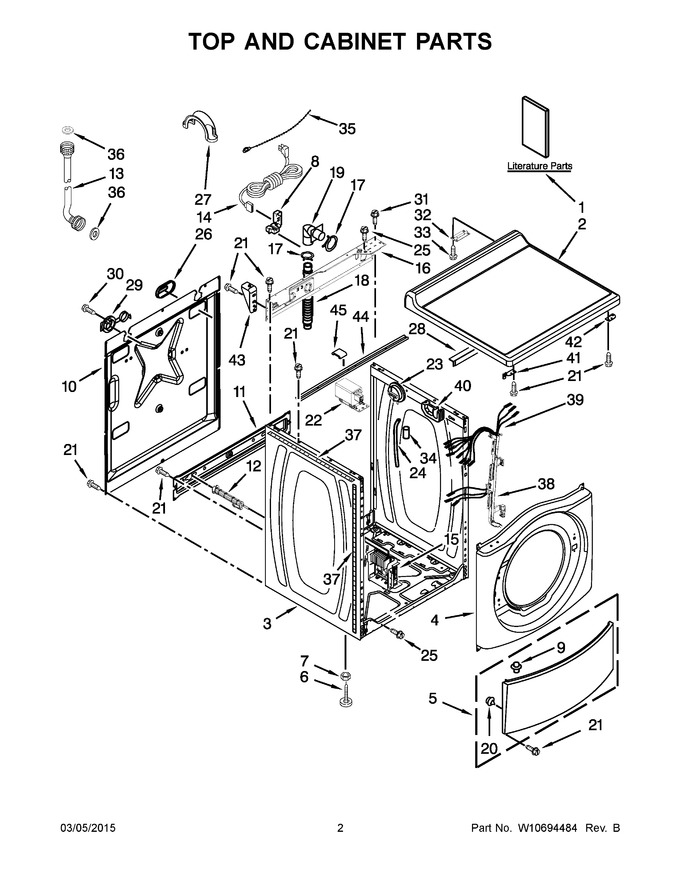

02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Pump And Motor Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10487509		Installation Instructions		Appelez-nous	-
2	W11622909		Top (white)   (Replaces: W10137410)		Appelez-nous	-
3	W10198145		Cabinet (white)   (Replaces: W10276046)		Appelez-nous	-
4	WPW10306505		Panel, Front (white)   (Replaces: W10306505)				$ 374.67
5	WP8540664		Panel, Toe (white)   (Replaces: 8540813)				$ 377.11
6	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 13.22
7	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 7.55
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 17.56
9	8518891		Rivet				$ 14.07
10	W10258342		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport				$ 45.35
12	W10763471		Bolt, Shipping (set Of 4)   (Replaces: W10251449)				$ 42.13
13	WPW10352644		Hose, Water Inlet (cold)   (Replaces: W10352644)				$ 33.98
14	W10476825		Cord, Power		Appelez-nous	-
15	WPW10385821		Motor Control Unit   (Replaces: W10385821)				$ 487.66
16	W10244560		Brace, Rear				$ 94.10
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
18	WPW10106460		Hose, Drain Outer   (Replaces: W10106460)				$ 28.68
19	W11757170		Connector, Hose Outlet   (Replaces: W10003260)			Immediately	$ 6.71
20	238614		Bumper				$ 84.79
21	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 11.49
22	W10398805		Filter, Interference		Appelez-nous	-
23	W10292407		Switch, Pressure				$ 38.65
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 9.22
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 7.30
27	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 8.37
28	WPW10342663		Angle, Support Top   (Replaces: W10342663)				$ 149.58
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 23.94
30	8182201		Screw   (Replaces: 8540727)				$ 14.08
31	8540329		Screw		Appelez-nous	-
32	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 115.34
33	WP488627		Screw   (Replaces: 342055)				$ 8.11
34	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
35	WPW10339879		Tie, Cable (beaded)   (Replaces: 3347868)				$ 8.30
36	WP16123		Washer, Inlet Hose   (Replaces: 3976300)				$ 8.16
37	W10183819		Seal, Foam		Appelez-nous	-
38	W10200785		Harness Channel, Side Front   (Replaces: W10168546)				$ 9.54
39	W10475277		Harness, Wiring (lower Main)		Appelez-nous	-
40	8540643		Bracket, Spring				$ 12.86
41	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
42	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
43	W10137398		Stop, Top Panel		Appelez-nous	-
44	WP8540721		Brace, Top   (Replaces: 8540721)				$ 52.26
45	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 28.40
13A	WPW10352594		Hose, Water Inlet (warm)   (Replaces: W10352594)				$ 41.30
1A	W10491134		User Instructions Tech Sheet		Appelez-nous	-
1B	W10491131		Tech Sheet (english)		Appelez-nous	-
1C	W10491133		Tech Sheet (french)		Appelez-nous	-
NI	W10330605		Ccu To Mcu-serial Communication (3 Pole)		Appelez-nous	-
NI	W10480265		Ccu To Mcu - Power (2 Pole)		Appelez-nous	-
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
NI	W10628146		Adapter, Power Cord (austrailian)   (Replaces: W10223804)				$ 124.89
NI	W10223807		Adapter, Power Cord (british)		Appelez-nous	-
NI	W10628146		Adapter, Power Cord (european)   (Replaces: W10223809)				$ 124.89
NI	W10153836		Adapter, Power Cord (10a Cord Lock)		Appelez-nous	-
NI	W10200775		Door Lock - Power		Appelez-nous	-
