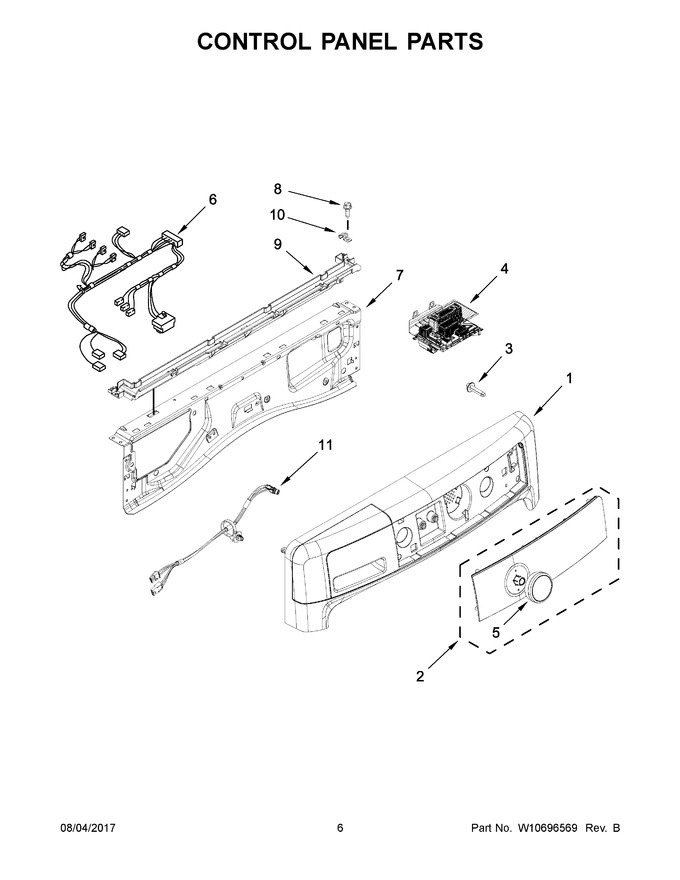

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11174376 | Assembly, Console (white) (Replaces: W10774409) |
|
$ 378.47 | |||||
| 2 | W10748420 | Assembly, Iml (white) |
|
$ 607.59 | |||||
| 3 | W10489172 | Screw |
|
$ 11.98 | |||||
| 4 | W10908724 | Control Unit, Appliance |
|
- | |||||
| 5 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 6 | W11229597 | Harness, Main (upper) (Replaces: W10685626) |
|
Immediately | $ 170.43 | ||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | W11172160 | Channel, Water (Replaces: W10796900) |
|
$ 71.25 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 28.54 | |||||
| 1A | W11174390 | Assembly, Console (chrome Shadow) (Replaces: W10774407) |
|
$ 406.40 | |||||
| 2A | W10748421 | Assembly, Iml (chrome Shadow) |
|
$ 808.78 |
