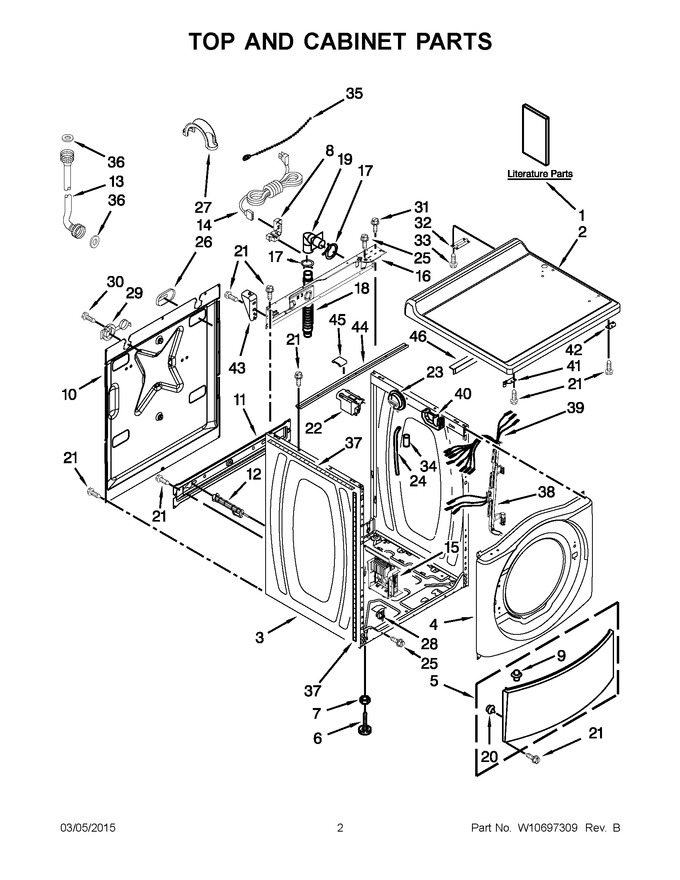

02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Meter Case Parts


06 - Dispenser Parts


07 - Tub And Basket Parts


08 - Pump And Motor Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10353871		Installation Instructions		Appelez-nous	-
2	WPW10137411		Top (white)   (Replaces: W10137411)				$ 390.48
3	W10198145		Cabinet (white)   (Replaces: W10276046)		Appelez-nous	-
4	WPW10306505		Panel, Front (white)   (Replaces: W10306505)				$ 356.83
5	WP8540664		Panel, Toe (white)   (Replaces: 8540664)				$ 359.15
6	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 12.59
7	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 7.19
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 16.72
9	8518891		Rivet				$ 13.40
10	W10258342		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport				$ 43.19
12	W10763471		Bolt, Shipping (set Of 4)   (Replaces: W10251449)				$ 40.12
13	WP89503		Hose, Water Inlet (cold)   (Replaces: W10194208)			Immediately	$ 24.09
14	W11764783		Cord, Power   (Replaces: W10205500)				$ 43.66
15	WPW10384849		Unit, Motor Control   (Replaces: W10384849)			Immediately	$ 367.93
16	W10244560		Brace, Rear				$ 89.62
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
18	WPW10106460		Hose, Drain Outer   (Replaces: W10106460)				$ 27.31
19	W11757170		Connector, Hose Outlet   (Replaces: W10003260)			Immediately	$ 6.39
20	238614		Bumper				$ 80.76
21	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 10.94
22	WPW10367632		Filter, Interference   (Replaces: W10339736)				$ 122.22
23	W10292407		Switch, Pressure				$ 38.65
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 8.78
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 6.95
27	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
28	WPW10085220		Microswitch   (Replaces: W10085220)				$ 33.25
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 22.80
30	8182201		Screw   (Replaces: 8540727)				$ 13.41
31	8540329		Screw		Appelez-nous	-
32	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 109.85
33	WP488627		Screw   (Replaces: 342055)				$ 7.57
34	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
35	WPW10339879		Tie, Cable (beaded)   (Replaces: 3347868)				$ 7.90
36	WP16123		Washer, Inlet Hose   (Replaces: 3976300)				$ 7.70
37	W10693220		Seal, Foam		Appelez-nous	-
38	W10200785		Harness Channel, Side Front   (Replaces: W10168546)				$ 9.09
39	WPW10298334		Harness, Wiring (lower Main)   (Replaces: W10298334)				$ 110.61
40	8540643		Bracket, Spring				$ 12.25
41	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
42	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
43	W10137398		Stop, Top Panel		Appelez-nous	-
44	WP8540721		Brace, Top   (Replaces: 8540721)				$ 49.77
45	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 27.05
46	WPW10342663		Angle, Support Top   (Replaces: W10342663)				$ 142.46
13A	WP89503		Hose, Water Inlet (hot)   (Replaces: 8571378)			Immediately	$ 24.09
1A	W10311068		Tech Sheet (english)		Appelez-nous	-
1B	W10311070		Tech Sheet (french)		Appelez-nous	-
NI	8540205		Door Lock - Power		Appelez-nous	-
NI	W10253050		Ccu To Mcu - Power (2 Pole)				$ 79.91
NI	W10253054		Ccu To Mcu - Serial Communication (3 Pole)				$ 46.38
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
