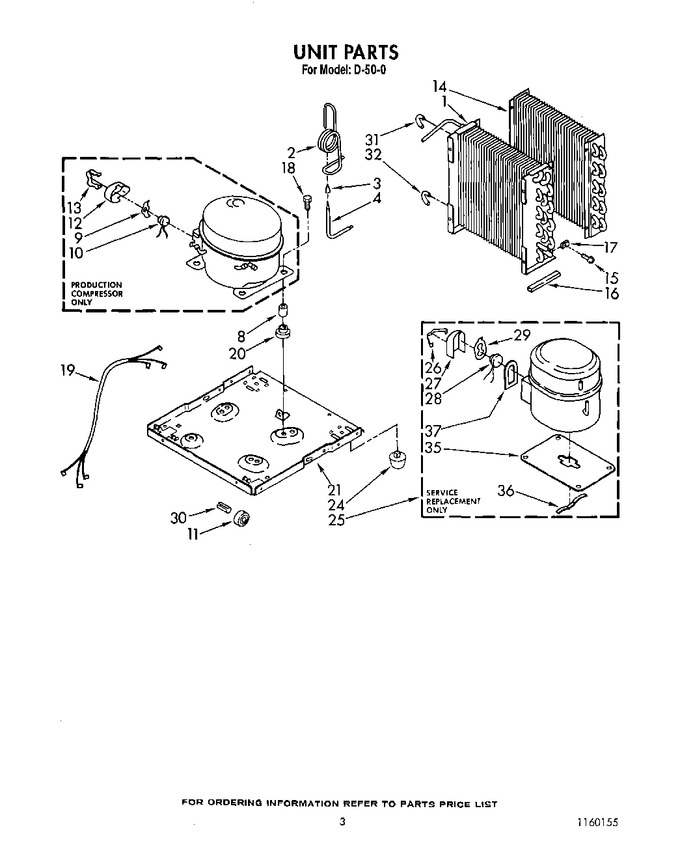

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951345		Condenser		Appelez-nous	-
2	951684		Tube, Restrictor (46.0`` Length)		Appelez-nous	-
3	474013		Strainer, Tube		Appelez-nous	-
4	951349		Tube, Outlet (includes Item 3)		Appelez-nous	-
8	646498		Sleeve (4)		Appelez-nous	-
9	950061		Spring, Overload		Appelez-nous	-
10	951312		Overload, Protector		Appelez-nous	-
11	998726		Roller (2)		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	1159235		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	998867		Seal		Appelez-nous	-
17	488660		Nut, Speed (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
24	951886		Glide (2)		Appelez-nous	-
25	876949		Compressor, Service (complete Assembly)		Appelez-nous	-
26	832008		Retainer, Cover		Appelez-nous	-
27	798470		Cover, Terminal		Appelez-nous	-
28	798479		Overload		Appelez-nous	-
29	798469		Spring, Overload		Appelez-nous	-
30	489015		Pin, Roller (2)		Appelez-nous	-
31	855199		Bend, Return (13)		Appelez-nous	-
32	854624		Bend, Return		Appelez-nous	-
35	876944		Plate, Compressor Mounting		Appelez-nous	-
36	643179		Spring, Mounting		Appelez-nous	-
37	WP489069		Screw, No.8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
37	1162476		Ptc Start Device		Appelez-nous	-
37	1162477		Ptc Clamp		Appelez-nous	-
37	1162377		Wire Assy. (2)		Appelez-nous	-
37	798471		Gasket, Cover		Appelez-nous	-
