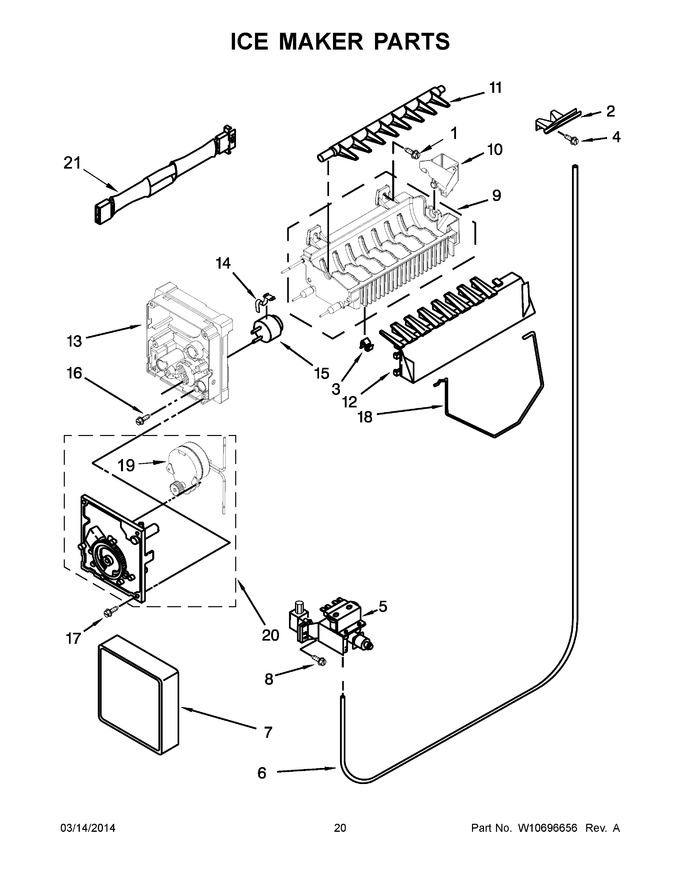

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 35.32 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 5 | WPW10179146 | Filter Valve Assembly (Replaces: W10179146) |
|
Immediately | $ 99.47 | ||||
| 6 | W10823511 | Tube, Water (Replaces: W10357069) |
|
Immediately | $ 32.41 | ||||
| 7 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 8 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 9 | WPW10300025 | Assembly, Mold And Heater (Replaces: W10300025) |
|
Immediately | $ 201.92 | ||||
| 10 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 22.65 | |||||
| 11 | W10318914 | Ejector, Arm |
|
$ 38.08 | |||||
| 12 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 99.42 | |||||
| 13 | WP2195914 | Support, Housing (Replaces: 2195914) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | WP2321258 | Thermostat (also Order No.542369) (Replaces: 2321258) |
|
$ 103.93 | |||||
| 16 | W10001280 | Screw |
|
- | |||||
| 17 | W10001240 | Screw |
|
$ 9.22 | |||||
| 18 | W11807379 | Arm, Shut Off (Replaces: 2304354) |
|
Immediately | $ 63.21 | ||||
| 19 | N/P | Motor (not Serviced, Order No.20) |
|
- | |||||
| 20 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 21 | W10838084 | Harness, Icemaker (Replaces: W10508644) |
|
$ 121.75 | |||||
| 100 | WPW10300022 | Complete Icemaker Assembly (Replaces: W10300022) |
|
Immediately | $ 259.86 |
