01 - Cover Sheet


02 - Oven Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Control Panel Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

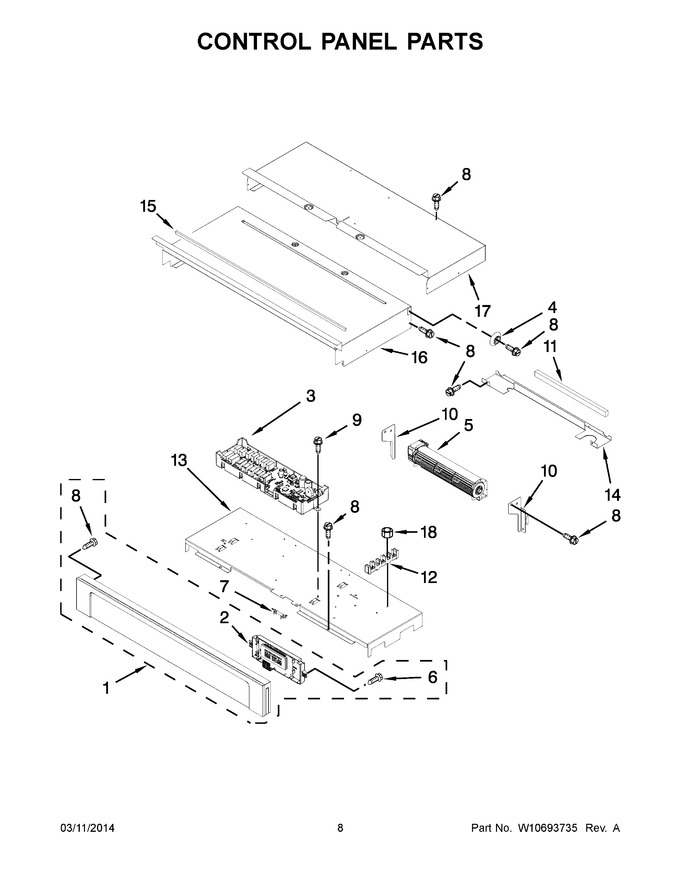

1	W10861488		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10540048)				$ 572.16
1	W10540049		Assembly, Control Panel (includes Overlay) (white)		Appelez-nous	-
1	W10861490		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10540047)				$ 879.03
2	W10803991		Board, Mrc2 Display   (Replaces: W10532437)			Immediately	$ 420.04
3	W10741603		Board, Mrc2 Main   (Replaces: W10496288)			Immediately	$ 312.44
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10641253		Blower				$ 127.63
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545255		Fuse, Thermal   (Replaces: W10545255)			Immediately	$ 27.91
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10283078		Bracket, Blower Right		Appelez-nous	-
10	W10351257		Bracket, Blower Left		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10283005		Tray, Electronic		Appelez-nous	-
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 89.66
16	W10318193		Chassis, Cover Top Front 27``				$ 136.08
17	W10318195		Chassis, Cover Top Back 27``				$ 111.04
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 7.55
