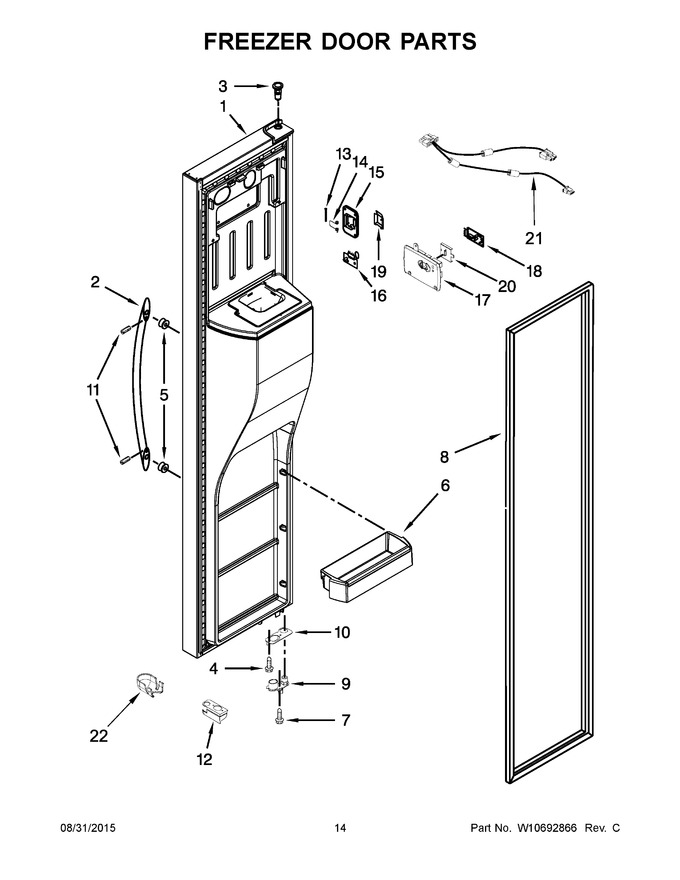

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10639122 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | W10899551 | Handle (brushed Aluminum) (Replaces: W10407272) |
|
Immediately | $ 169.94 | ||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 6 | WPW10296857 | Bin, Door (Replaces: W10296857) |
|
$ 73.18 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 8 | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 303.54 | |||||
| 9 | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 11.86 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 62.29 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 12 | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10257223) |
|
$ 6.80 | |||||
| 13 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 16.79 | |||||
| 14 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 80.77 | |||||
| 16 | W10870822 | Board, Emitter Circuit (Replaces: W10518659) |
|
Immediately | $ 205.25 | ||||
| 17 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 40.05 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 296.07 | ||||
| 19 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 71.69 | |||||
| 20 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.04 | |||||
| 21 | W10411699 | Harness, Emitter And Recever |
|
$ 137.51 | |||||
| 22 | W10323148 | Cover, Wire |
|
$ 38.03 |
