SELECT A DIAGRAM
01 - Cover Sheet

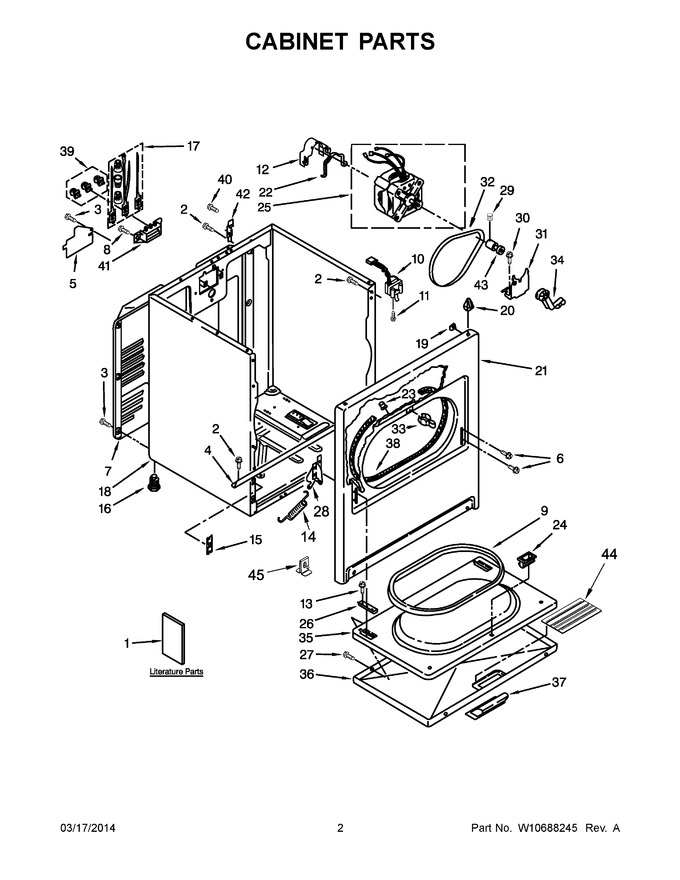

02 - Cabinet Parts
03 - Top And Console Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10648591 | Wiring Diagram |
|
- | |||||
| 1 | W10454275 | Use & Care Guide |
|
- | |||||
| 1 | W10514189 | Installation Instructions |
|
- | |||||
| 2 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11298298 | Cover, Terminal Block (Replaces: W10571619) |
|
$ 93.91 | |||||
| 6 | 342043 | Screw |
|
- | |||||
| 7 | 280043 | Panel, Rear (Replaces: W10571724) |
|
$ 358.37 | |||||
| 8 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 9 | W10906683 | Seal, Door (Replaces: W10389571) |
|
$ 134.96 | |||||
| 10 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 13 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 14 | WPW10041960 | Spring, Door (Replaces: W10041960) |
|
Immediately | $ 42.70 | ||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 21 | 279443 | Assembly, Front Panel (white) (Replaces: W10664693) |
|
$ 405.51 | |||||
| 22 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | WP3389441 | Assembly, Door Catch (Replaces: 3389441) |
|
$ 6.20 | |||||
| 25 | W11618508 | Assembly, Motor (50 Hz) (Replaces: W10289660) |
|
$ 365.52 | |||||
| 26 | W11252547 | Clip, Hinge (Replaces: 337189) |
|
$ 22.46 | |||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 28 | WP8066057 | Hinge, Door (left) (Replaces: 8066057) |
|
$ 100.95 | |||||
| 28 | WP8066056 | Hinge, Door (right) (Replaces: 8066056) |
|
Immediately | $ 103.36 | ||||
| 29 | 690046 | Screw, Set |
|
- | |||||
| 30 | 3400500 | Bolt |
|
Immediately | $ 14.04 | ||||
| 31 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 32 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 34 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 35 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 267.29 | |||||
| 36 | WP3393549 | Assembly, Outer Door (white) (Replaces: 3393549) |
|
$ 185.34 | |||||
| 37 | W10877261 | Handle, Door (Replaces: W10095180) |
|
$ 90.77 | |||||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces: W10663510) |
|
Immediately | $ 78.78 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 40 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 41 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 42 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 8.21 | |||||
| 43 | W11233559 | Assembly, Pulley (Replaces: 685011) |
|
$ 119.58 | |||||
| 44 | W10595510 | Tape, Foil |
|
- | |||||
| 45 | W10575896 | Clip, Spring |
|
$ 15.15 | |||||
| NI | 49621 | Foot, Optional Extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
