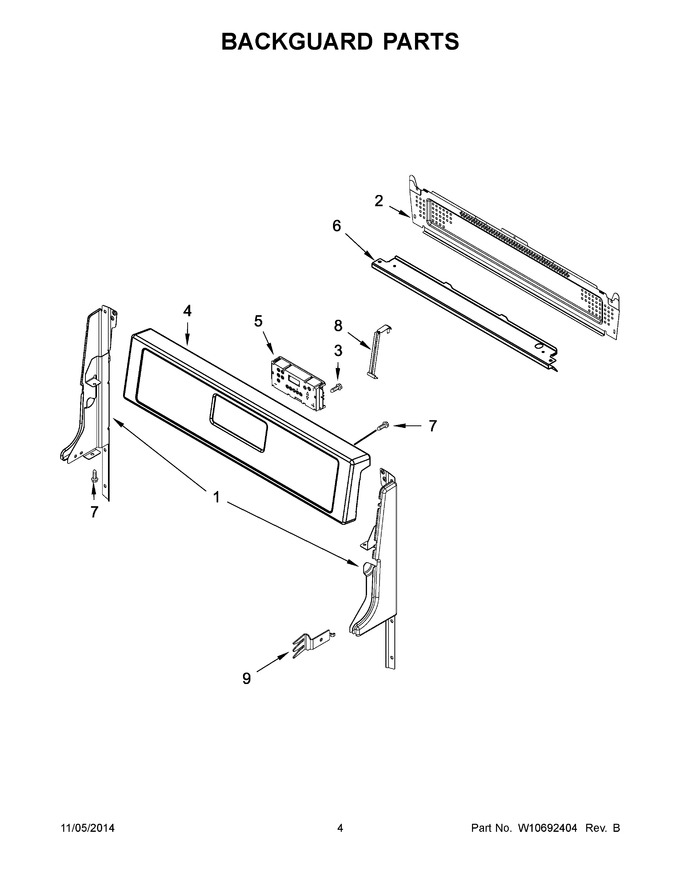

03 - Backguard Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Door Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10873441		Endcap (left Hand) (white)   (Replaces: W10662110)		Appelez-nous	-
2	W10588614		Backguard, Rear   (Replaces: W10535808)		Appelez-nous	-
3	W10837731		Screw   (Replaces: 98006633)				$ 8.30
4	W11032844		Panel, Control (white)   (Replaces: W10535676)		Appelez-nous	-
5	W11805589		Control, Electronic (white)   (Replaces: W10556709)		Appelez-nous	-
6	W10535746		Bracket, Console Mount		Appelez-nous	-
7	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 14.72
8	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 84.81
9	W10535815		Bracket, Rear		Appelez-nous	-
1A	W10873109		Endcap (left Hand) (black)   (Replaces: W10662115)		Appelez-nous	-
1B	W10873438		Endcap (right Hand) (white)   (Replaces: W10661915)		Appelez-nous	-
1C	W10873107		Endcap (right Hand) (black)   (Replaces: W10661916)		Appelez-nous	-
4A	W11121752		Panel, Control (black)   (Replaces: W10535677)		Appelez-nous	-
4B	W11097777		Panel, Control (black With Overlay (stainless Model))   (Replaces: W10585590)		Appelez-nous	-
5A	WPW10556710		Control, Electronic (black)   (Replaces: W10556710)				$ 337.50
