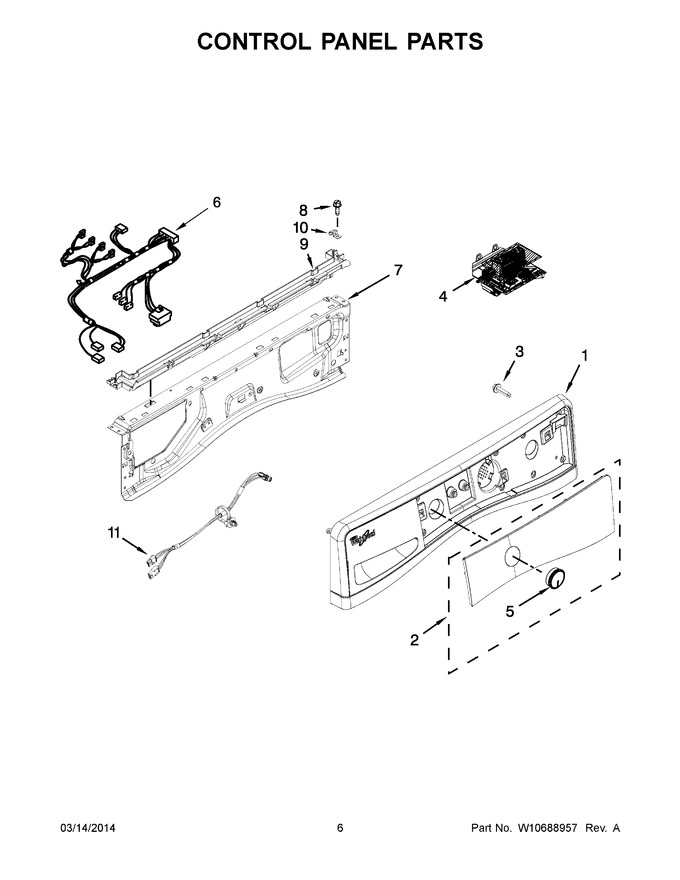

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10463516 | Assembly, Console (chrome Shadow) (Replaces: W10463516) |
|
$ 382.74 | |||||
| 1 | W10446408 | Assembly, Console (white) |
|
$ 203.22 | |||||
| 2 | W10639971 | Assembly, Iml (chrome Shadow) |
|
- | |||||
| 2 | W10750479 | Assembly, Iml (white) (Replaces: W10433088) |
|
- | |||||
| 3 | W10589828 | Screw |
|
$ 14.56 | |||||
| 4 | W10661570 | Control Unit, Appliance |
|
- | |||||
| 5 | W10875909 | Assembly, Timer Knob (white) (Replaces: W10631126) |
|
Immediately | $ 52.99 | ||||
| 5 | WPW10631127 | Assembly, Timer Knob (gray) (Replaces: W10631127) |
|
$ 39.95 | |||||
| 6 | W10685627 | Harness, Main (upper) (Replaces: W10632342) |
|
$ 147.15 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 27.18 |
