View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

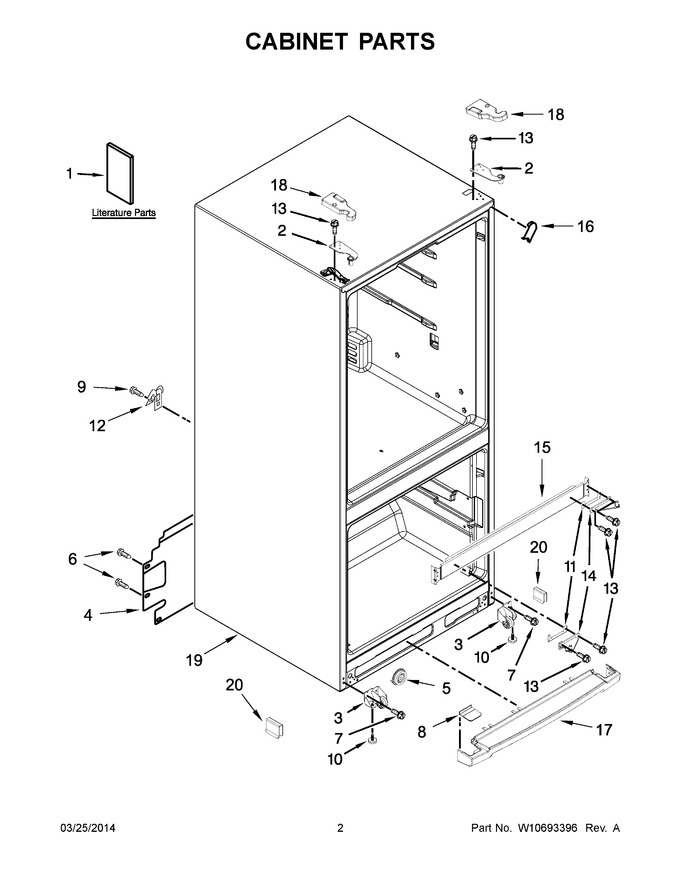

02 - Cabinet Parts
03 - Liner Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10596092 | Service And Wiring Sheet |
|
- | |||||
| 1 | W10452526 | Energy Label |
|
- | |||||
| 1 | W10460643 | Use & Care Guide |
|
- | |||||
| 2 | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 24.87 | ||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 70.15 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 51.83 | ||||
| 3 | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 100.64 | ||||
| 4 | W10636716 | Cover, Unit (Replaces: W10444800) |
|
$ 105.27 | |||||
| 5 | W10331226 | Drum, Toe Grille |
|
$ 47.42 | |||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 85.50 | |||||
| 8 | W10353930 | Cover, Toe Grille (black) |
|
$ 85.34 | |||||
| 8 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 85.42 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 11 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 25.34 | ||||
| 12 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 14 | WPW10521411 | Hinge, Center (left Hand) (Replaces: W10521411) |
|
Immediately | $ 77.49 | ||||
| 14 | WPW10521409 | Hinge, Center (right Hand) (Replaces: W10521409) |
|
Immediately | $ 38.22 | ||||
| 15 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 16 | W10851579 | Corner Filler (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 16 | W11252732 | Corner Filler (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 16 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 17 | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 162.80 | |||||
| 17 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 103.32 | ||||
| 17 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 161.49 | |||||
| 18 | W10465767 | Cover, Hinge (right Hand (grey)) |
|
Immediately | $ 21.46 | ||||
| 18 | W10465770 | Cover, Hinge (right Hand (black)) |
|
$ 22.77 | |||||
| 18 | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 20.53 | |||||
| 18 | W10465765 | Cover, Hinge (left Hand (white)) |
|
$ 20.57 | |||||
| 18 | W10465764 | Cover, Hinge (right Hand (white)) |
|
$ 21.51 | |||||
| 18 | W10465771 | Cover, Hinge (left Hand (black)) |
|
$ 19.76 | |||||
| 19 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 |
