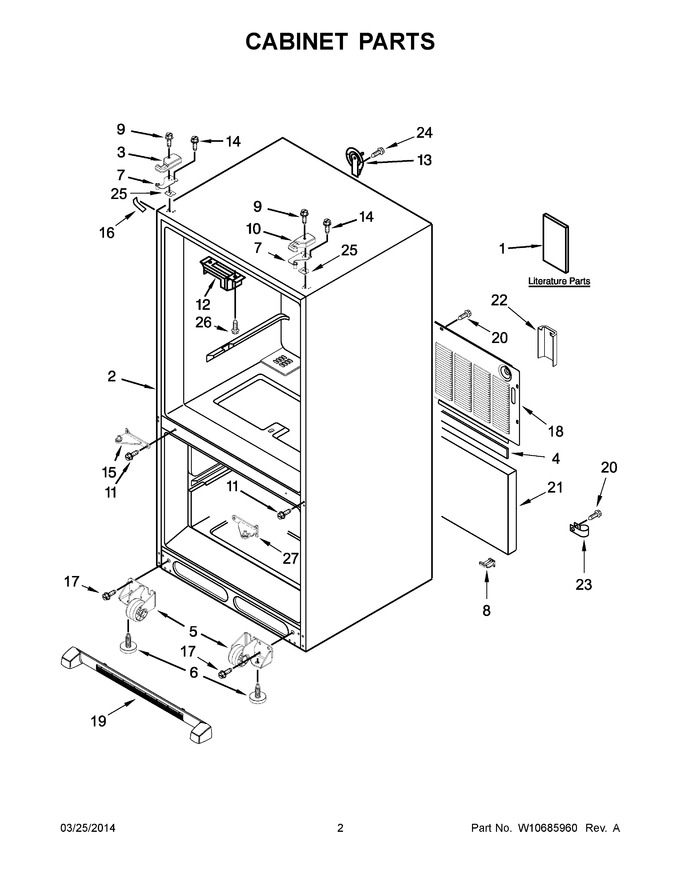

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10673870 | Energy Guide |
|
- | |||||
| 1 | W10631680N | Tech Sheet |
|
- | |||||
| 1 | W10621529 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10337647 | Cover, Left Hinge (black) (Replaces: W10337647N) |
|
Immediately | $ 23.33 | ||||
| 3 | WPW10337648 | Cover, Left Hinge (grey) (Replaces: W10337648) |
|
$ 23.12 | |||||
| 3 | WPW10337634 | Cover, Left Hinge (white) (Replaces: W10337634N) |
|
Immediately | $ 23.54 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205EDN) |
|
Immediately | $ 31.90 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204EDN) |
|
$ 31.92 | |||||
| 8 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 67005958 | Cover, Right Hinge (white) (Replaces: 12962302WN) |
|
$ 21.57 | |||||
| 10 | WPW10191117 | Cover, Right Hinge (grey) (Replaces: 12962302AP) |
|
$ 23.05 | |||||
| 10 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302BN) |
|
$ 22.54 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center (lt) (black) (Replaces: 13000007ED) |
|
$ 91.53 | |||||
| 15 | W10917988 | Hinge, Center (lt) (grey) (Replaces: 13000001AP) |
|
Immediately | $ 95.63 | ||||
| 15 | W10918113 | Hinge, Center (lt) (white) (Replaces: 13000001WD) |
|
$ 97.92 | |||||
| 16 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 16 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 16 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 17 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 18 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 19 | WPW10534160 | Grille, Toe (grey) (Replaces: W10534160N) |
|
Immediately | $ 72.60 | ||||
| 19 | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 148.16 | |||||
| 19 | WPW10534161 | Grille, Toe (white) (Replaces: W10534161) |
|
$ 147.09 | |||||
| 20 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 21 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 22 | W10208592 | Cover, Valve |
|
- | |||||
| 23 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 25 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 25 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 26 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 27 | 13000002WD | Hinge, Center (rt) (white) |
|
$ 160.99 | |||||
| 27 | W10917988 | Hinge, Center (rt) (grey) (Replaces: 13000002AP) |
|
Immediately | $ 95.63 | ||||
| 27 | W10918164 | Hinge, Center (rt) (black) (Replaces: 13000008ED) |
|
$ 91.53 |
