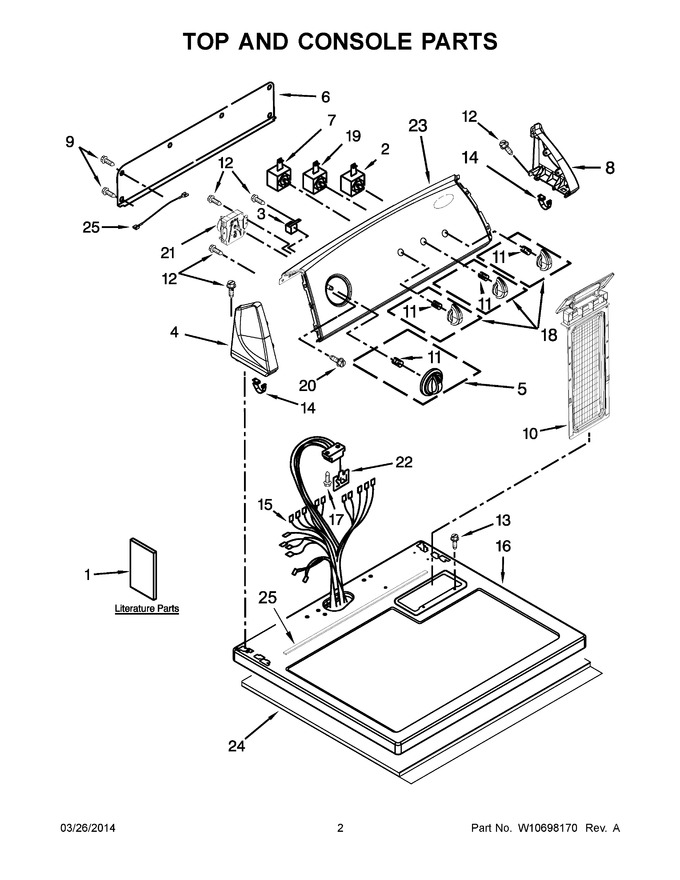

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - 8318272 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329763		Instructions, Installation		Appelez-nous	-
1	W10368973		Use & Care Guide		Appelez-nous	-
1	W10185994		Wiring Diagram		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 58.28
5	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
6	W10103406		Panel, Rear (console)				$ 121.78
7	8530169		Switch, Rotary Temperature				$ 132.35
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 59.26
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Screen, Lint (white)   (Replaces: W10641634)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	W10640704		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
18	W10034380		Assembly, Control Knob (white/metallic)				$ 25.06
19	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 137.51
20	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
21	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 164.31
22	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
23	W10354023		Panel & Console Assembly		Appelez-nous	-
24	W10123956		Panel, Dampening		Appelez-nous	-
25	W10316616		Seal, Foam				$ 25.01
