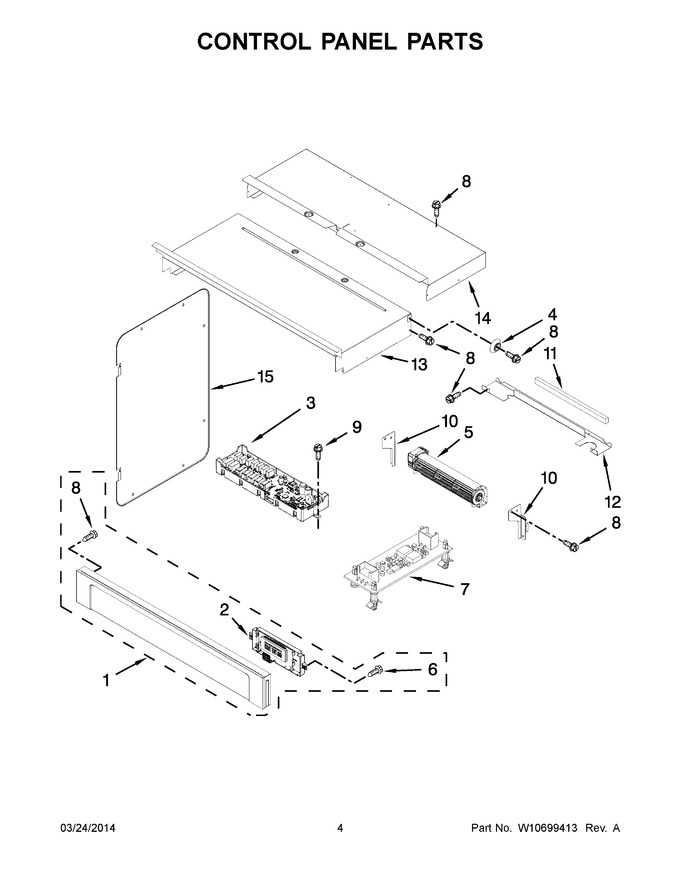

03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10861734		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10540043)				$ 703.02
1	W10566023		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10540045)		Appelez-nous	-
1	W10861736		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10540042)				$ 976.13
1	W10540044		Assembly, Control Panel (includes Overlay) (black Ice)		Appelez-nous	-
1	W10861737		Assembly, Control Panel (includes Overlay) (white Ice)   (Replaces: W10540046)		Appelez-nous	-
2	W10532438		Board, Mrc2 Display				$ 431.08
3	WPW10632435		Board, Mrc2 Main   (Replaces: W10632435)				$ 467.22
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	WPW10661038		Blower   (Replaces: W10661038)				$ 259.23
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10412514		Board, Wide Interface   (Replaces: W10412514)				$ 318.64
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10283078		Bracket, Blower Right		Appelez-nous	-
10	W10351257		Bracket, Blower Left		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10509164		Chassis, Divider Back		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30``		Appelez-nous	-
14	W10283031		Chassis, Cover Top Back 30``		Appelez-nous	-
15	W10283033		Chassis, Side		Appelez-nous	-
