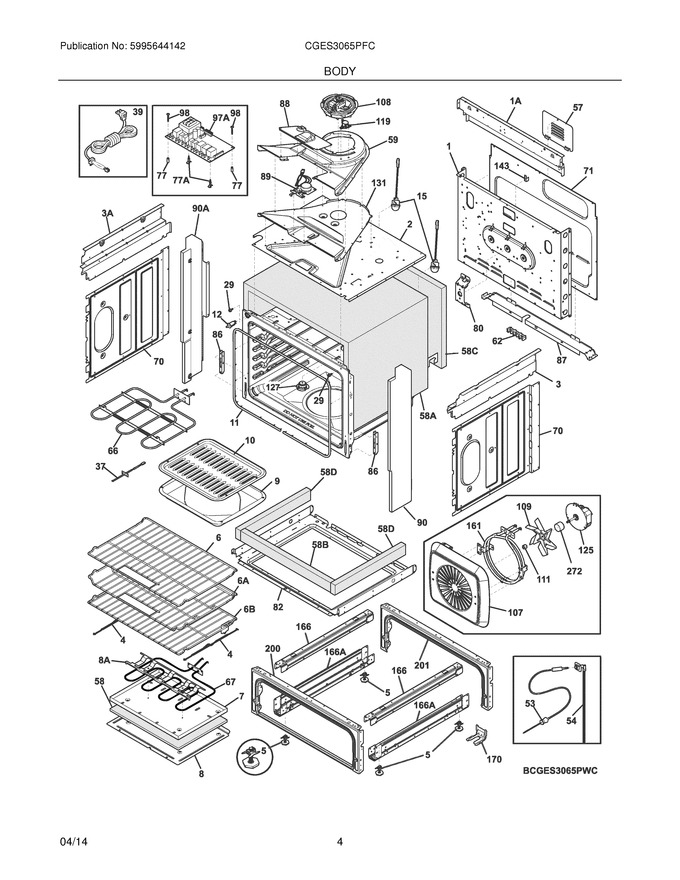

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017302 | Panel,main Back |
|
- | |||||
| 2 | 139028100 | Shield,insulation ,top |
|
- | |||||
| 3 | 318225230 | Panel,bodyside ,upper Rh |
|
- | |||||
| 4 | 318927600 | Support,auto Rack ,(2) |
|
$ 23.25 | |||||
| 5 | 318175510 | Screw,leveling ,w/tee Nut (Replaces: 318175508) |
|
Immediately | $ 26.96 | ||||
| 6 | 139011600 | Rack,oven ,w/handle |
|
$ 124.74 | |||||
| 7 | 318297303 | Box,bake Element |
|
$ 139.82 | |||||
| 8 | 318359500 | Panel,service |
|
$ 155.66 | |||||
| 9 | 318138801 | Pan,broileroptional Access0ry |
|
- | |||||
| 10 | 318126401 | Insert,broiler Panoptional Access0ry |
|
- | |||||
| 11 | 807545502 | Seal,oven Door ,gray |
|
$ 155.93 | |||||
| 29 | 316517600 | Spacer,oven Door |
|
$ 13.39 | |||||
| 57 | 316283600 | Cover,access |
|
$ 13.89 | |||||
| 58 | 318294912 | Insullation,bake Element |
|
$ 107.97 | |||||
| 59 | 139027600 | Duct,cooling Fan ,upper |
|
$ 95.29 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 70 | 139000601 | Shield,insulation ,sides ,(2) (Replaces: 139000600) |
|
$ 80.05 | |||||
| 71 | 139014000 | Shield,rear Wall ,lower |
|
- | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 49.61 | |||||
| 80 | 139021101 | Bracket,support ,chassis/fan (Replaces: 139021100) |
|
$ 16.54 | |||||
| 82 | 139008201 | Shield,insulation ,lower |
|
- | |||||
| 86 | 318561100 | Receptacle,hinge ,(2) |
|
$ 23.59 | |||||
| 87 | 318260625 | Bracket,cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover,latch Motor (Replaces: 139027900) |
|
$ 26.78 | |||||
| 90 | 5304511889 | Panel,filler ,black ,rh (Replaces: 318296904) |
|
$ 82.69 | |||||
| 98 | 5303289910 | Screw,truss Sqdr ,8a X 1`` |
|
$ 6.30 | |||||
| 107 | 139013903 | Cover,convection Fan |
|
$ 52.07 | |||||
| 109 | 318398302 | Blade,fan ,convection (Replaces: 139009100) |
|
Immediately | $ 32.34 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 21.26 | ||||
| 127 | 5304538693 | Tube Assembly,vent ,w/catalyst (Replaces: 139042600) |
|
Immediately | $ 11.14 | ||||
| 131 | 139027700 | Duct,cooling Fan ,lower |
|
$ 81.11 | |||||
| 143 | 318172904 | Support,wire |
|
- | |||||
| 166 | 318298410 | Bracket,base Support ,(2) |
|
$ 84.26 | |||||
| 170 | 5304486410 | Kit,anti Tip ,w/brkt & Instru |
|
$ 176.11 | |||||
| 200 | 318298226 | Frame,drawer ,front |
|
$ 107.00 | |||||
| 201 | 318298233 | Frame,drawer ,black (Replaces: 318298230) |
|
$ 50.40 | |||||
| 272 | 139021700 | Tube,convection Fan |
|
$ 19.69 | |||||
| 1A | 139004600 | Panel,main Back ,upper |
|
$ 75.13 | |||||
| 3A | 318225231 | Panel,bodyside ,upper Lh |
|
- | |||||
| 58A | 139001700 | Insulation,oven Wrapper ,top & Sides |
|
- | |||||
| 58B | 139020300 | Insulation,front |
|
- | |||||
| 58C | 139020201 | Insulation,oven Back |
|
- | |||||
| 58D | 139020301 | Insulation,sides ,(2) |
|
- | |||||
| 6A | 139012400 | Rack,oven ,offset ,w/handle |
|
$ 181.34 | |||||
| 6B | 139013101 | Rack,auto (Replaces: 139013100) |
|
$ 176.96 | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| 8A | 318313601 | Bracket,bake Element |
|
$ 71.45 | |||||
| 90A | 5304511890 | Panel,filler ,black ,lh (Replaces: 318296905) |
|
$ 90.16 | |||||
| F108 | 318575612 | Motor,cooling Fan |
|
Immediately | $ 218.45 | ||||
| F119 | 807144901 | Thermostat,cooling Fan ,110 Deg. |
|
$ 64.88 | |||||
| F12 | 316445501 | Switch,oven Light ,door Frame |
|
Immediately | $ 100.01 | ||||
| F125 | 139008500 | Motor,convection Fan |
|
Immediately | $ 240.25 | ||||
| F15 | 5304528790 | Lamp Assembly,round ,halogen ,w/lens ,w/bulb (Replaces: 139009000) |
|
Immediately | $ 22.84 | ||||
| F161 | 8581390065036 | Element,convection ,2500w (Replaces: 139006500) |
|
$ 52.92 | |||||
| F166 | 318298403 | Bracket,base Support ,lower ,(2) |
|
- | |||||
| F201 | 318531701 | Spacer |
|
$ 13.39 | |||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 53.48 | ||||
| F39 | 318113111 | Cord,electric |
|
$ 95.55 | |||||
| F53 | 5304504202 | Probe,meat Temp ,red (Replaces: 318601303) |
|
Immediately | $ 117.99 | ||||
| F54 | 139017201 | Receptacle Assy,meat Probe |
|
$ 208.69 | |||||
| F66 | 5304521498 | Element,broil ,6 Pass ,3400w (Replaces: 139008900) |
|
Immediately | $ 96.90 | ||||
| F67 | 5304521880 | Element,bake ,2500w ,8 Pass (Replaces: 139026700) |
|
Immediately | $ 127.74 | ||||
| F89 | 5304528836 | Motor,latch Assembly (Replaces: 139078300) |
|
Immediately | $ 84.82 | ||||
| F97A | 316442112 | Board,power ,relay |
|
Immediately | $ 365.16 | ||||
| FNI | 5304495807 | Harness,wiring ,main |
|
$ 260.82 | |||||
| FNI | 316303501 | Harness Assembly,filter ,electrical ,w/capacitors |
|
$ 94.34 | |||||
| FNI | 318946500 | Bulb,halogen ,g9 ,25w ,120v |
|
Immediately | $ 67.15 | ||||
| FNI | 808195801 | Harness,wiring ,communication |
|
- | |||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 15.75 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 318579001 | Bracket,wire |
|
$ 11.08 | |||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.37 | |||||
| NI | 316205500 | Nut,hex Flange ,3/8 10-32 |
|
$ 12.60 | |||||
| NI | 318264200 | Plate,grounding Strap |
|
$ 26.12 |
