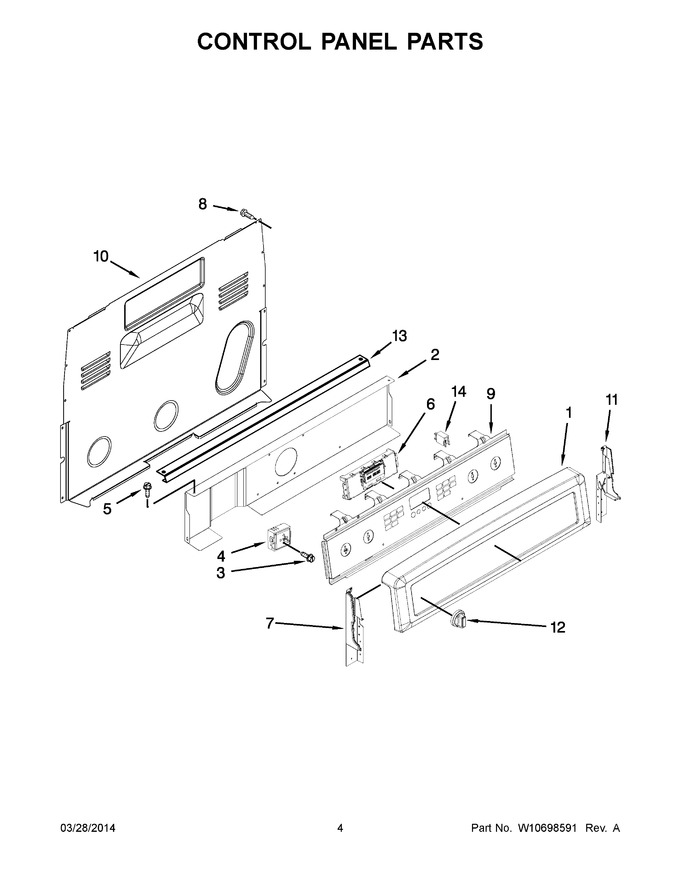

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10097310 | Panel, Backguard (stainless) |
|
$ 116.84 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 4 | WPW10411934 | Switch, Infinite (right Front) (Replaces: W10411934) |
|
Immediately | $ 98.85 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WPW10391743 | Switch, Triple (left Front) (Replaces: W10391743) |
|
Immediately | $ 112.24 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 6 | WPW10340324 | Control Board (Replaces: W10340324) |
|
Immediately | $ 332.78 | ||||
| 7 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 9 | W10655854 | Overlay, Active (stainless) |
|
$ 313.13 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 12 | WPW10666901 | Knob (stainless) (Replaces: W10666901) |
|
$ 140.36 | |||||
| 13 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 14 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 |
