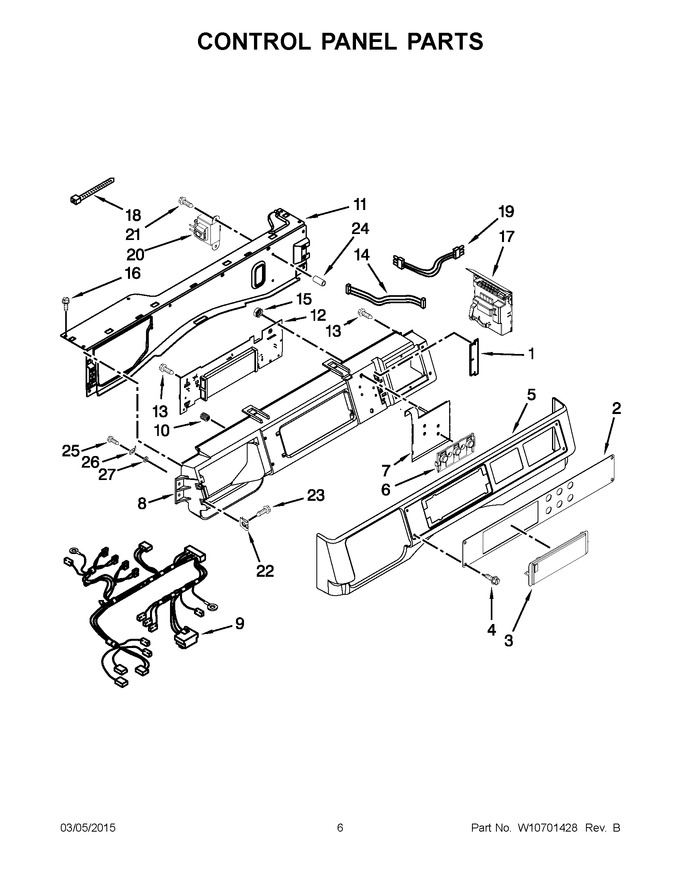

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10187276 | Seal, Console |
|
- | |||||
| 2 | W10320729 | Facia / Overlay |
|
- | |||||
| 3 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 62.63 | |||||
| 4 | WPW10137457 | Screw (Replaces: W10137457) |
|
$ 7.07 | |||||
| 5 | W10779084 | Console, Outer (Replaces: W10137458) |
|
$ 124.46 | |||||
| 6 | WPW10424308 | Button, Push (Replaces: W10131113) |
|
Immediately | $ 19.30 | ||||
| 7 | WPW10135255 | Switch, Membrane & Backer Plate (Replaces: W10135255) |
|
$ 197.47 | |||||
| 8 | W11028369 | Console, Inner (Replaces: W10137426) |
|
$ 302.72 | |||||
| 9 | W10475275 | Harness, Wiring (upper Main) |
|
- | |||||
| 10 | WPW10189313 | Insert (Replaces: W10189313) |
|
$ 8.31 | |||||
| 11 | W10294428 | Bracket, Console |
|
- | |||||
| 12 | WPW10679196 | User Interface (Replaces: W10679196) |
|
$ 313.71 | |||||
| 13 | 489136 | Screw |
|
$ 9.72 | |||||
| 14 | W10155150 | Harness, Test |
|
$ 3.02 | |||||
| 15 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 8.31 | |||||
| 16 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 10.34 | ||||
| 17 | W10539751 | Microcomputer, Machine Control |
|
$ 214.63 | |||||
| 18 | WP2205813 | Tie, Cable (Replaces: 3429563) |
|
$ 7.30 | |||||
| 19 | W11700546 | Harness, Wiring (console Uic) (Replaces: W10330606) |
|
$ 17.44 | |||||
| 20 | W10751202 | Transformer, 240-22.5 Vac (Replaces: W10633921) |
|
$ 202.81 | |||||
| 21 | 8540329 | Screw |
|
- | |||||
| 22 | WP9781235 | Nut, "u (Replaces: 9781235) |
|
$ 11.30 | |||||
| 23 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 6.57 | |||||
| 24 | W10018050 | Cap Plug |
|
- | |||||
| 25 | WP488234 | Screw (Replaces: 488234) |
|
$ 6.37 | |||||
| 26 | 3373818 | Tab, Grounding |
|
- | |||||
| 27 | W10189075 | Washer, Brass |
|
$ 17.22 | |||||
| NI | W10340898 | Ccu To Hot Fill Valve (2 Pole) |
|
- | |||||
| NI | W10340897 | Ccu To Cold Fill Valve (4 Pole) |
|
- | |||||
| NI | W10200793 | Coin Drop To Ccu (4 Pole) |
|
- | |||||
| NI | N/P | The Following Cable Sets: (not Illustrated) |
|
- |
