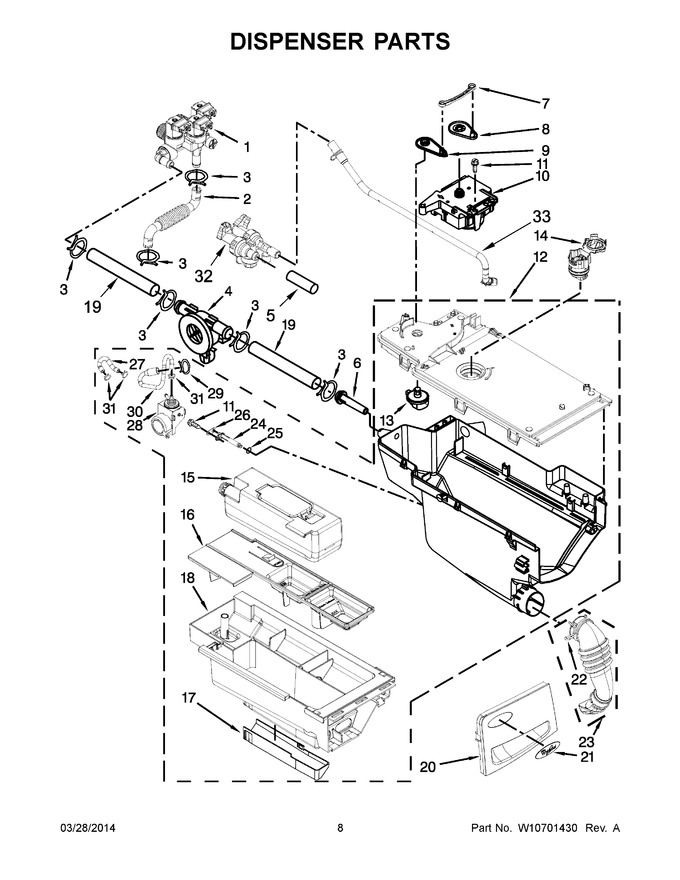

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10247306		Valve, Inlet   (Replaces: W10247306)			Immediately	$ 167.78
2	W10239949		Hose, Inlet Valve To Active Vent				$ 43.27
3	WP596669		Clamp, Hose   (Replaces: W10096852)			Immediately	$ 8.40
4	WPW10110225		Flowmeter   (Replaces: 8181696)			Immediately	$ 109.03
5	W10538825		Hose, Inlet				$ 25.83
6	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 90.30
7	WP8183183		Lever, Connection   (Replaces: 8183183)				$ 90.23
8	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 90.23
9	W10183517		Lever, Water Distribution				$ 9.94
10	WPW10352973		Actuator   (Replaces: W10163975)			Immediately	$ 134.69
11	WP8540282		Screw   (Replaces: 8540282)				$ 11.56
12	W10842325		Housing, Dispenser Assembly   (Replaces: W10368769)			Immediately	$ 379.71
13	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 89.11
14	WPW10306690		Sensor-magnetic, Angular   (Replaces: W10306690)			Immediately	$ 71.79
15	W10250743A		Dispenser, Minibulk Cartridge   (Replaces: W10250743)			Immediately	$ 66.49
16	W10256661		Siphon, Bleach/softener				$ 116.94
17	W10003140		Cover, Detergent Drawer				$ 85.63
18	WPW10250723		Drawer, Detergent   (Replaces: W10250723)				$ 162.37
19	W10566484		Hose, Pressure			Immediately	$ 39.86
20	W10639901		Handle, Drawer (black)				$ 72.19
20	WPW10446403		Handle, Drawer (white)   (Replaces: W10446403)				$ 75.11
20	WPW10446405		Handle, Drawer (chrome Shadow)   (Replaces: W10446405)				$ 89.40
20	W10502248		Handle, Drawer (silver)				$ 45.68
21	W10510982		Badge (grey)				$ 79.70
21	W11178521		Badge (white)   (Replaces: W10387117)			Immediately	$ 63.13
22	W10239910		Clamp, Hose			Immediately	$ 59.43
23	WPW10239966		Hose, Dispenser To Bellow   (Replaces: W10239966)				$ 82.95
24	W10250730		Tube, Siphon- Dock-minibulk				$ 16.81
25	W10250731		O-ring				$ 73.03
26	W10842325		Washer, Siphon Tube   (Replaces: W10376678)			Immediately	$ 379.71
27	W10268381		Hose, Tube To Pump				$ 27.49
28	W10842325		Pump, Metering   (Replaces: W10250734)			Immediately	$ 379.71
29	WP596669		Clamp, Hose   (Replaces: W10096851)			Immediately	$ 8.40
30	W10268382		Hose, Pump To Dispenser				$ 76.00
31	W10292700		Clamp, Hose		Appelez-nous	-
32	WPW10239942		Valve, Diverter   (Replaces: W10239942)			Immediately	$ 93.88
33	W10239908		Hose, Spray Assembly				$ 37.43

    View Diagram in Separate Window       Print Part List
