View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

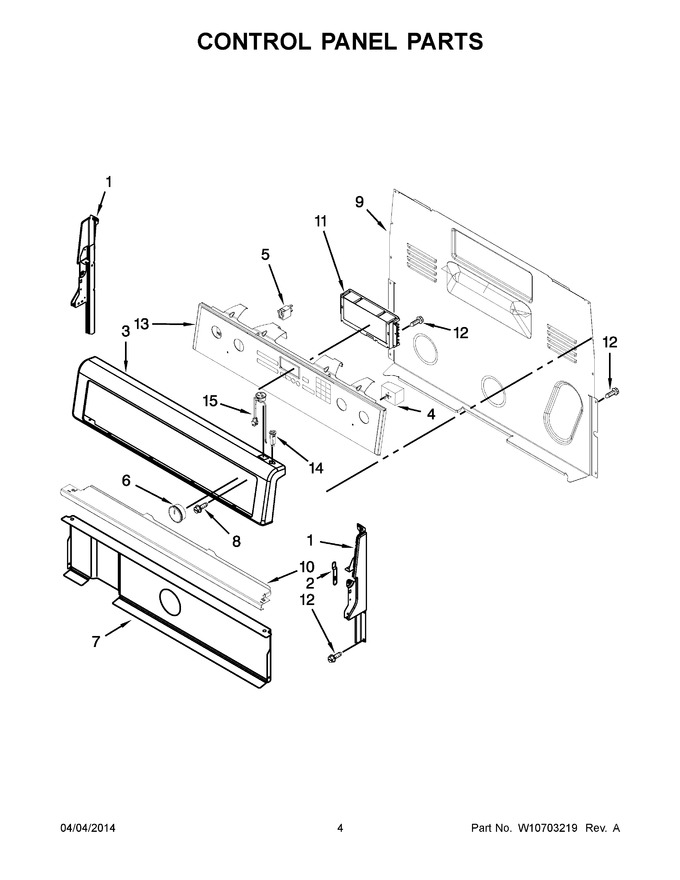

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219664 | Endcap Black (left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap Black (right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 3 | WPW10318555 | Panel, Backguard (white) (Replaces: W10318555) |
|
$ 217.64 | |||||
| 3 | WPW10318553 | Panel, Backguard (stainless) (Replaces: W10318553) |
|
$ 299.19 | |||||
| 3 | W10318554 | Panel, Backguard (black) |
|
$ 143.26 | |||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10411934 | Switch, Infinite (left Rear) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front & Right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WPW10490036 | Knob (black) (Replaces: W10490036) |
|
$ 21.08 | |||||
| 6 | W10490035 | Knob (white) |
|
$ 22.28 | |||||
| 6 | WPW10430806 | Knob (stainless) (Replaces: W10430806) |
|
Immediately | $ 26.11 | ||||
| 7 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 8 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 9 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 10 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 11 | WPW10340304 | Control, Range (mrc) (Replaces: W10340304) |
|
Immediately | $ 443.56 | ||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 13 | W10347930 | Overlay, Active (stainless) |
|
Immediately | $ 351.78 | ||||
| 13 | W10318556 | Overlay, Active (black) |
|
$ 211.23 | |||||
| 13 | W10347929 | Overlay, Active (white Ice) |
|
$ 283.05 | |||||
| 13 | W10318557 | Overlay, Active (white) |
|
$ 205.30 | |||||
| 14 | WP9757602 | Breaker, Circuit (15 Amp) (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 14 | WP9757601 | Breaker, Circuit (15 Amp) (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 15 | W10849725 | Receptacle (white) (Replaces: W10488077) |
|
Immediately | $ 80.79 | ||||
| 15 | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 18.47 |
