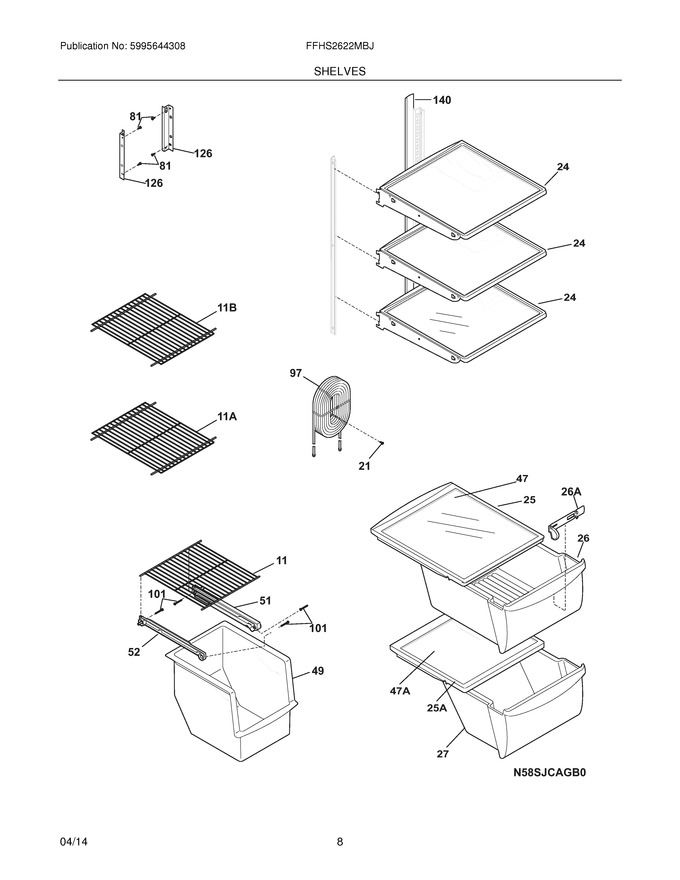

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657602		Shelf,flip Up ,wire				$ 96.06
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240355270		Shelf-``spill-safe``,fixed				$ 189.59
25	240599301		Cover-crisper Pan,upper			Immediately	$ 104.87
26	240351061		Pan-crisper,upper			Immediately	$ 122.23
27	240351207		Pan-crisper,lower				$ 193.04
47	240350649		Insert-pan Cover,glass			Immediately	$ 137.66
49	240564401		Basket-sliding			Immediately	$ 176.56
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	242220506		Water Tank   (Replaces: 240545310)				$ 105.53
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
126	241674402		Channel,auger Mtg ,rh				$ 48.04
126	241674401		Channel,auger Mtg ,lh				$ 52.76
140	240430501		Channel,wtr Tube Cover				$ 108.68
11A	241657512		Shelf,fixed ,freezer   (Replaces: 241657502)				$ 18.74
11B	241657514		Shelf,fixed ,upper ,freezer   (Replaces: 241657504)		Appelez-nous	-
25A	240350903		Cover-crisper Pan,lower				$ 102.21
26A	240362201		Control-humidity				$ 77.18
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
NI	241595202		Clip-slide,crisper				$ 20.22
NI	240349801		Clip-slide,pan				$ 22.75
NI	240362101		Clip-slide,cover				$ 52.25
NI	241868101		Air Guide		Appelez-nous	-
NI	242110281		Label-energyguide,energy Guide		Appelez-nous	-
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 78.40
NI	242200102		Clip,tubing ,90 Deg Elbow   (Replaces: 242200101)				$ 11.81
