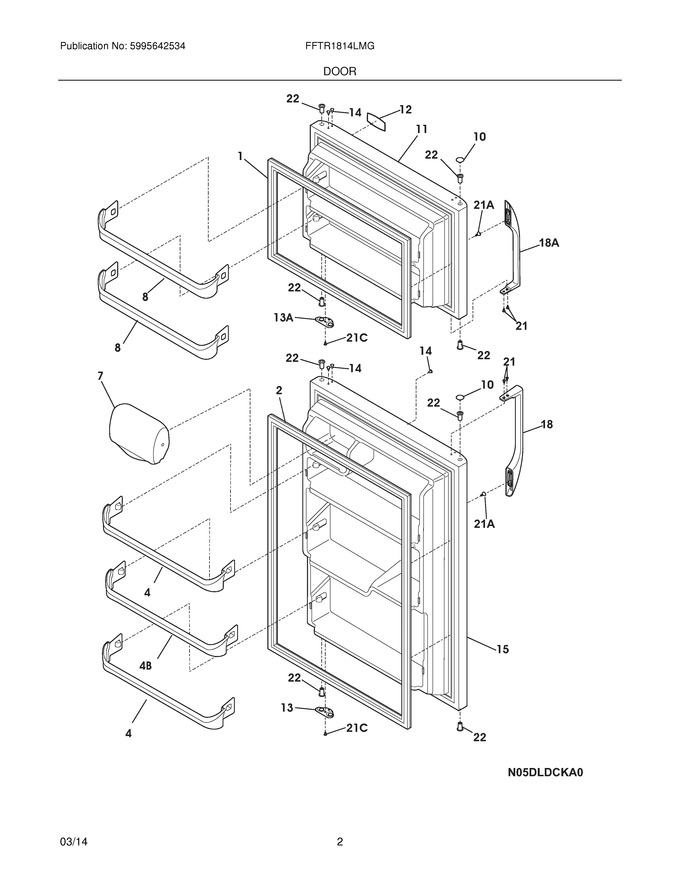

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193209 | Gasket-frzr Door,black ,magnetic |
|
Immediately | $ 219.58 | ||||
| 2 | 242193212 | Gasket-frzr Door,black ,magnetic |
|
Immediately | $ 213.18 | ||||
| 4 | 240534901 | Rack-door |
|
Immediately | $ 52.25 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 10 | 240381307 | Plug-button,silver Mist ,hinge Brg Hole (Replaces: 240381306) |
|
Immediately | $ 18.54 | ||||
| 11 | 240409921 | Door-frzr,silver Mist ,complete Assy |
|
$ 699.83 | |||||
| 12 | 242016301 | Nameplate,frigidaire |
|
$ 4.73 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494001 | Plug-button,white ,cab Liner Holes |
|
Immediately | $ 20.22 | ||||
| 14 | 240494006 | Plug-button,silver Mist |
|
$ 19.69 | |||||
| 15 | 240410134 | Door-refr,silver Mist ,complete Assy |
|
$ 662.66 | |||||
| 18 | 5304506471 | Handle-door,black ,refr-rh/frzr-lh (Replaces: 242059506) |
|
Immediately | $ 106.18 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 13A | 240312415 | Door Stop,black ,frzr |
|
$ 23.63 | |||||
| 18A | 5304506471 | Handle-door,black ,refr-lh/frzr-rh (Replaces: 242059503) |
|
Immediately | $ 106.18 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 4B | 240534701 | Rack-door,4b |
|
Immediately | $ 32.00 |
