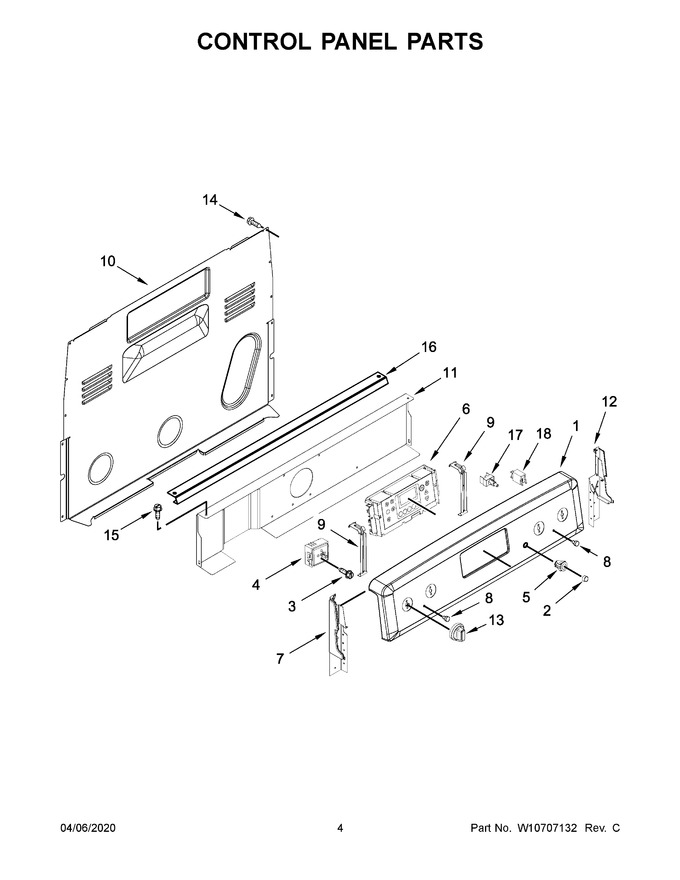

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10655839 | Console (white) |
|
- | |||||
| 2 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 6 | WPW10655840 | Control (white) (Replaces: W10655840) |
|
$ 274.09 | |||||
| 7 | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 42.45 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 60.83 | |||||
| 13 | WPW10666901 | Knob (stainless) (Replaces: W10666901) |
|
$ 155.95 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 17 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 178.91 | |||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 12A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 | |||||
| 1A | WPW10655842 | Console (black) (Replaces: W10655842) |
|
$ 320.41 | |||||
| 1B | W10655844 | Console (stainless) |
|
- | |||||
| 2A | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 2B | W10918209 | Button, Keep Warm (grey) (Replaces: W10315961) |
|
$ 20.21 | |||||
| 4A | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4B | WPW10411934 | Switch, Infinite (right Front) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 5A | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 5B | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 6A | WPW10655843 | Control (black) (Replaces: W10655843) |
|
$ 260.43 | |||||
| 6B | WPW10655845 | Control (stainless) (Replaces: W10655845) |
|
$ 275.09 | |||||
| 7A | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 |
