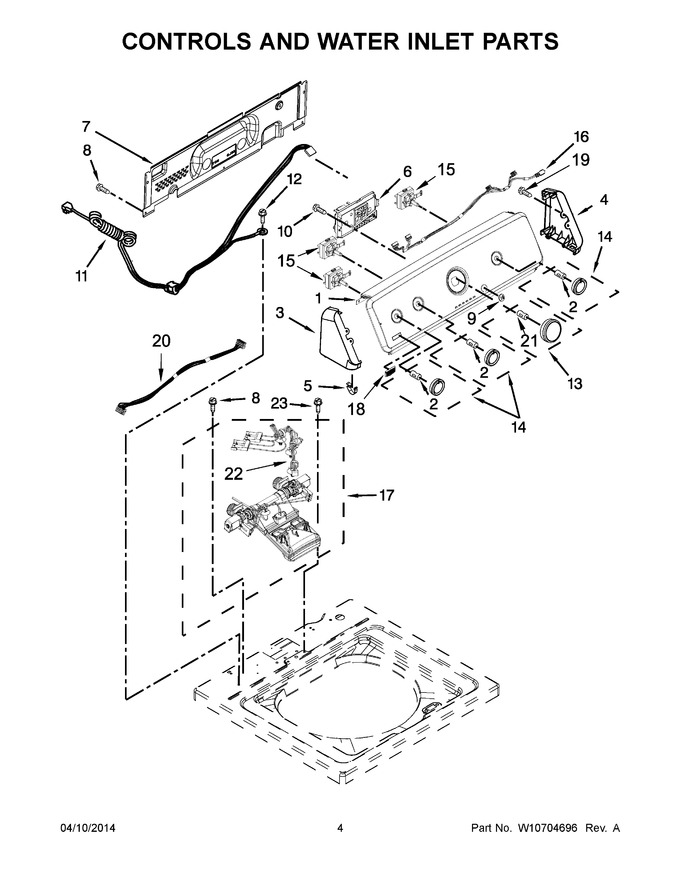

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10468416 | Panel, Console (Replaces: W10468416) |
|
$ 368.74 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 3 | WPW10193824 | End Cap (left) (white) (Replaces: W10193824) |
|
$ 70.85 | |||||
| 4 | WPW10193821 | End Cap (right) (white) (Replaces: W10193821) |
|
$ 71.16 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10671330 | Control Unit Assembly, Machine And Motor |
|
$ 282.06 | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 343.27 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 9 | W11164083 | Push Button, Start (Replaces: W10584360) |
|
$ 71.30 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 155.63 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 13 | W11837899 | Assembly, Timer Knob (grey) (Replaces: W10558463) |
|
Immediately | $ 17.93 | ||||
| 14 | W11837893 | Assembly, Control Knob (grey) (Replaces: W10562155) |
|
$ 17.93 | |||||
| 15 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 181.40 | ||||
| 16 | W10291177 | Harness, Upper (temperature) |
|
$ 145.40 | |||||
| 17 | WPW10683603 | Inlet Assembly, Water (Replaces: W10501149) |
|
Immediately | $ 81.56 | ||||
| 18 | W10199708 | Badge |
|
$ 50.74 | |||||
| 19 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 20 | W10291184 | Harness, Upper E-star |
|
$ 156.30 | |||||
| 21 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 22 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 185.64 | |||||
| 23 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 |
