View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

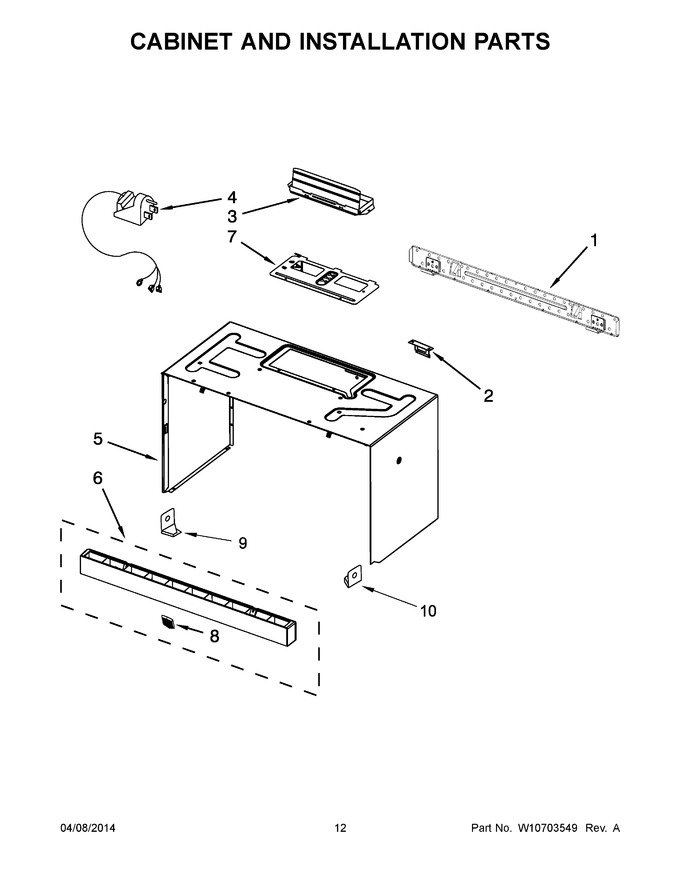

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 24.69 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 84.59 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 21.56 | |||||
| 5 | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 297.51 | |||||
| 5 | WPW10462003 | Case, Outer (white) (Replaces: W10462003) |
|
$ 291.92 | |||||
| 6 | W10527308 | Grille, Vent (white) |
|
$ 93.71 | |||||
| 6 | W10259232 | Grille, Vent (stainless) |
|
Immediately | $ 169.06 | ||||
| 6 | W10527310 | Grille, Vent (black) |
|
$ 98.40 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10286845 | Badge |
|
$ 35.23 | |||||
| 9 | W10830163 | Vent Grid Holder, Left Side (black) (Replaces: W10406308) |
|
$ 14.21 | |||||
| 9 | W11026306 | Vent Grid Holder, Left Side (white) (Replaces: W10393278) |
|
Immediately | $ 7.55 | ||||
| 10 | W10703282 | Vent Grid Holder, Right Side (white) (Replaces: W10393276) |
|
$ 11.00 | |||||
| 10 | W10810989 | Vent Grid Holder, Right Side (black) (Replaces: W10406307) |
|
$ 10.22 | |||||
| NI | 8205948 | Miscellaneous, Installation, Hardware |
|
$ 26.90 | |||||
| NI | W10190020 | Miscellaneous, Template, Upper |
|
$ 56.21 | |||||
| NI | WP8169704 | Miscellaneous, 1/4-20x3`` Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10556400 | Miscellaneous, Harness, Main |
|
$ 181.88 | |||||
| NI | W10553852 | Miscellaneous, Harness, Wire Turntable Motor And Hood Lamp |
|
- |
