SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

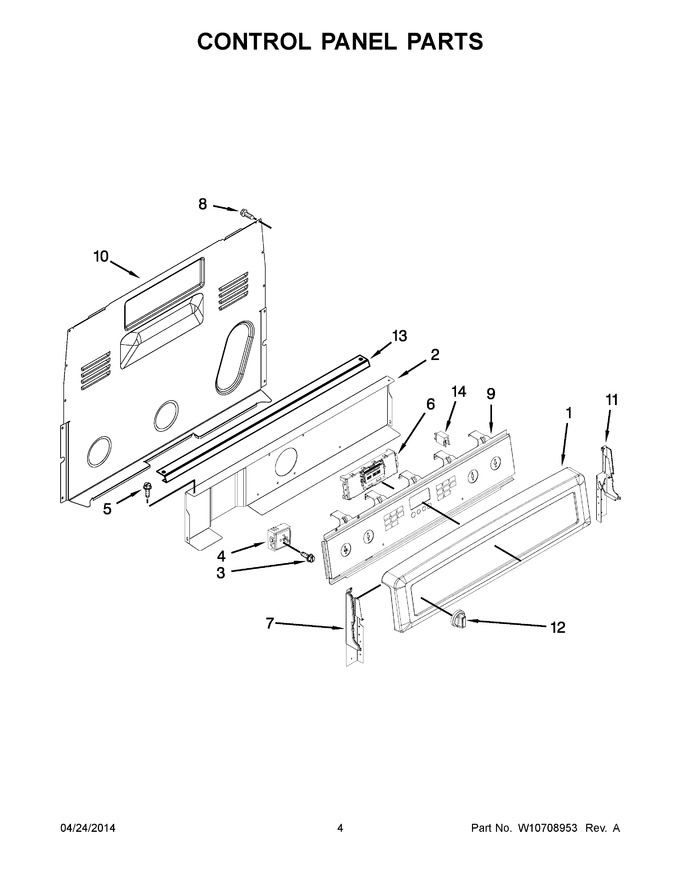

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10097270		Panel, Backguard (white)				$ 118.50
1	W10097280		Panel, Backguard (black)				$ 119.25
1	W10097310		Panel, Backguard (stainless)				$ 116.84
2	W10134247		Shield, Heat			Immediately	$ 358.82
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
4	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	WPW10434452		Switch, Infinite (left Front)   (Replaces: W10434452)			Immediately	$ 140.84
4	WPW10411934		Switch, Infinite (right Front)   (Replaces: W10411934)			Immediately	$ 109.39
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
6	WPW10340323		Control (mrc)   (Replaces: W10340323)			Immediately	$ 389.59
7	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
7	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 153.83
8	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
9	W10655851		Overlay, Active (stainless)				$ 366.57
9	W10655849		Overlay, Active (black)				$ 358.68
9	W10655846		Overlay, Active (white)				$ 358.19
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
11	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 45.17
12	WPW10666901		Knob (stainless)   (Replaces: W10666901)				$ 155.95
13	W10525121		Bracket, Console Mounting				$ 98.85
14	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 86.31
