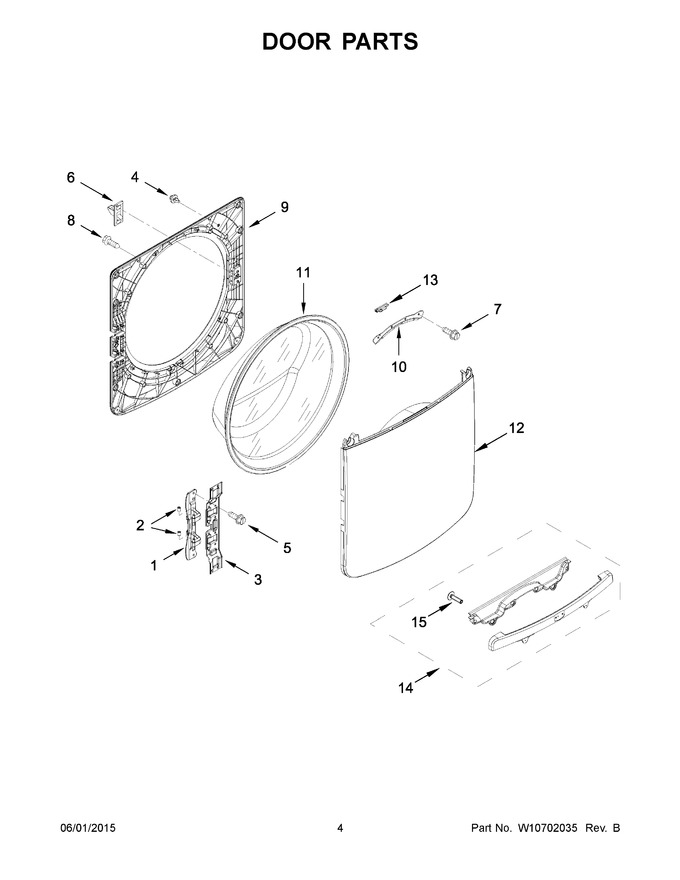

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 117.42 | ||||
| 2 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 21.47 | ||||
| 3 | W10839743 | Plate, Hinge Retainer (Replaces: W10312805) |
|
$ 21.56 | |||||
| 4 | 8572266 | Bumper, Door |
|
Immediately | $ 11.17 | ||||
| 5 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 6 | WPW10488048 | Strike, Door (Replaces: W10488048) |
|
Immediately | $ 7.89 | ||||
| 7 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.28 | |||||
| 8 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.94 | |||||
| 9 | W11316776 | Frame, Door Back Support (Replaces: W10272396) |
|
Immediately | $ 175.18 | ||||
| 10 | W10295703 | Clamp, Glass (Replaces: W10003440) |
|
$ 18.90 | |||||
| 11 | W10607723 | Glass, Door |
|
$ 129.91 | |||||
| 12 | WPW10424239 | Door, Outer Assembly (Replaces: W10424239) |
|
Immediately | $ 381.58 | ||||
| 13 | W10003430 | Clamp, Glass Support |
|
- | |||||
| 14 | W10626040 | Handle, Door (chrome Shadow) |
|
$ 220.92 | |||||
| 15 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.19 |
