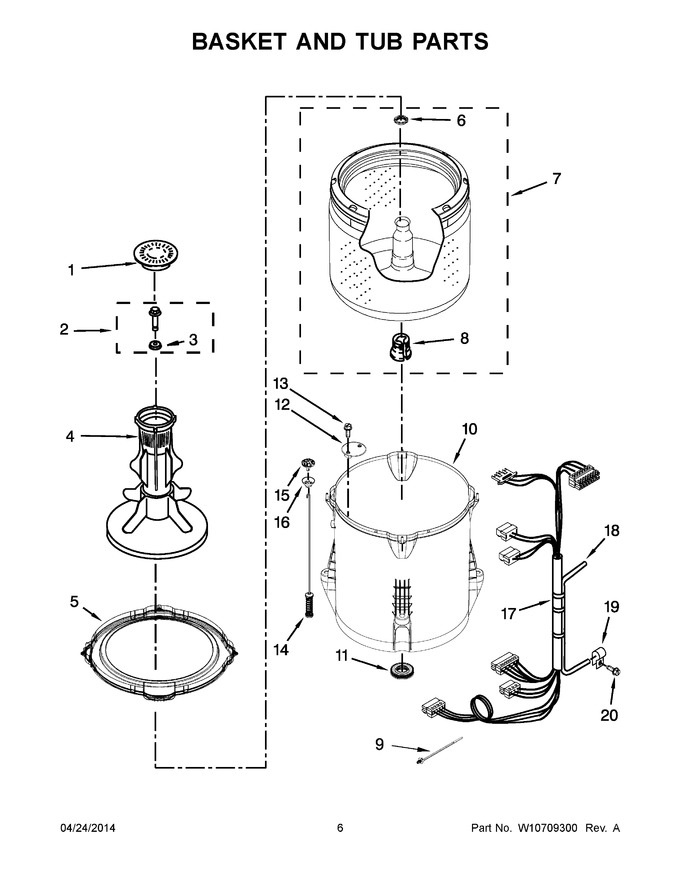

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3352483 | Cap, Agitator (Replaces: 3352483) |
|
$ 55.94 | |||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 4 | WPW10131112 | Agitator Assembly (complete) (Replaces: 63377) |
|
Immediately | $ 123.30 | ||||
| 5 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 182.35 | ||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 10.40 | ||||
| 7 | W10584118 | Basket Assembly |
|
$ 339.77 | |||||
| 8 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 9 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.18 | |||||
| 10 | W10371566 | Tub (includes Tub Seal) (Replaces: W10238320) |
|
$ 320.71 | |||||
| 11 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 84.15 | ||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 13 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 14 | W10780045 | Damper Assembly, Tub Suspension (set Of 4-includes Items 23 And 24) (Replaces: W10537442) |
|
Immediately | $ 102.83 | ||||
| 15 | W10560146 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) |
|
- | |||||
| 16 | W10256551 | Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) |
|
- | |||||
| 17 | W10860783 | Harness, Lower (Replaces: W10610072) |
|
$ 173.19 | |||||
| 18 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 23.23 | ||||
| 19 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 20 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 |
