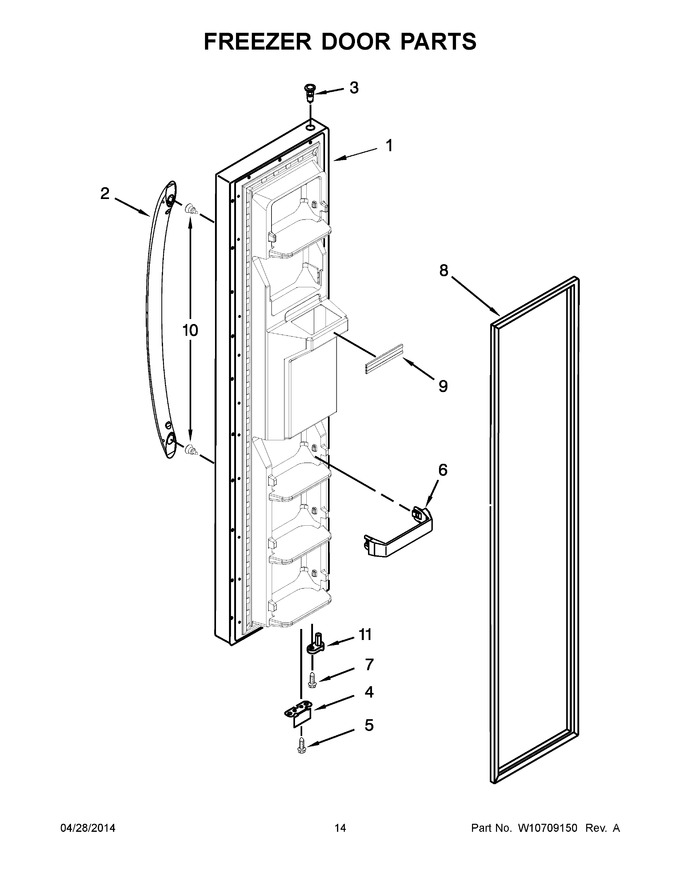

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10651096 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) (Replaces: W10651096) |
|
$ 1,604.42 | |||||
| 1 | LW10651097 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) (Replaces: W10651097) |
|
- | |||||
| 1 | LW10651099 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) (Replaces: W10651099) |
|
- | |||||
| 2 | WPW10268057 | Handle (black) (Replaces: W10268057) |
|
$ 174.11 | |||||
| 2 | WPW10670421 | Handle (stainless) (Replaces: W10274730) |
|
$ 254.15 | |||||
| 2 | WPW10268056 | Handle (white) (Replaces: W10268056) |
|
$ 174.11 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | 2306940B | Bracket, Door Stop (black) |
|
$ 38.97 | |||||
| 4 | 2306940 | Bracket, Door Stop (silver) |
|
$ 101.93 | |||||
| 5 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 6 | WP2309717 | Trim, Door (Replaces: 2309717) |
|
$ 58.64 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | 2159072 | Door Gasket, Magnetic (beige) (Replaces: 2309604) |
|
$ 323.60 | |||||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces: 2309654) |
|
$ 325.91 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307492) |
|
Immediately | $ 24.27 | ||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 11 | WP2223752 | Thimble, Cam (Replaces: 2223752) |
|
$ 21.16 |
