01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

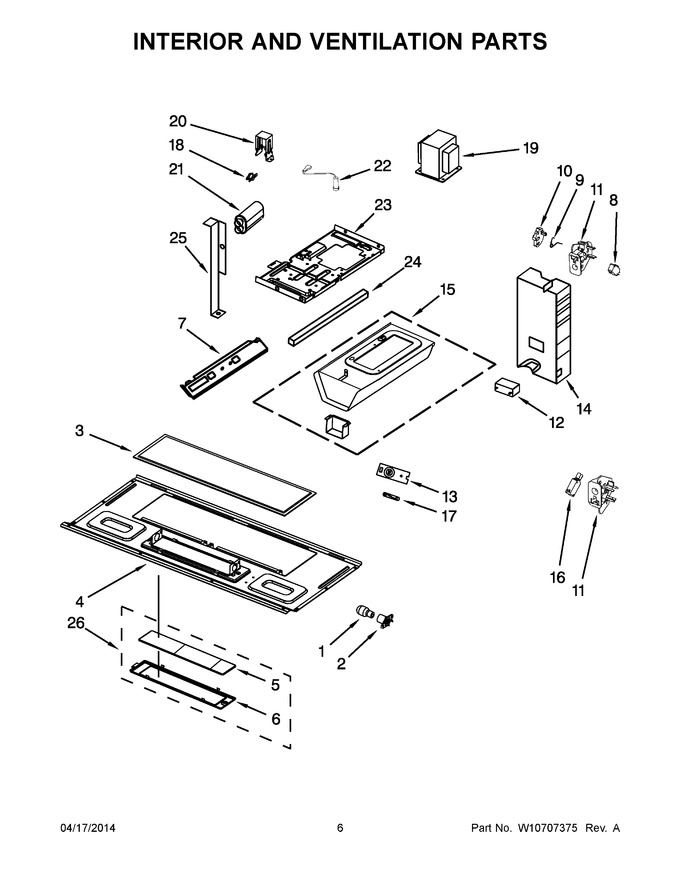

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206232A | Lamp 40 Watt (Replaces: 8206232) |
|
Immediately | $ 6.94 | ||||
| 2 | W10210871 | Holder, Lamp |
|
Immediately | $ 6.81 | ||||
| 3 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 29.33 | ||||
| 4 | W10245196 | Plate, Bottom |
|
$ 231.36 | |||||
| 5 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 315.85 | |||||
| 6 | W10210873 | Holder, Glass |
|
$ 5.75 | |||||
| 7 | W10315759 | Support, Ntc |
|
$ 94.56 | |||||
| 8 | W10269458 | Microswitch V15t16-cc200/nc |
|
Immediately | $ 36.10 | ||||
| 9 | W10156812 | Spring, Interlock |
|
Immediately | $ 10.93 | ||||
| 10 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 16.05 | ||||
| 11 | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 7.26 | ||||
| 11 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 20.13 | ||||
| 12 | W11405832 | Capacitor, Hood Motor (Replaces: W10605896) |
|
$ 25.74 | |||||
| 13 | W10163422 | Thermistor |
|
$ 161.73 | |||||
| 14 | W10448770 | Air Guide, Lower |
|
$ 18.95 | |||||
| 15 | W10313269 | Chassis Assembly |
|
- | |||||
| 16 | W10269460 | Microswitch V15t16-cp200/no |
|
Immediately | $ 41.36 | ||||
| 17 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 18 | W10269232 | Thermostat, Cavity |
|
$ 66.85 | |||||
| 19 | W10836753 | Transformer, High Voltage (Replaces: W10681123) |
|
Immediately | $ 297.50 | ||||
| 20 | W10532063 | Bracket, Capacitor |
|
$ 26.72 | |||||
| 21 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 183.78 | ||||
| 22 | W11256462 | Diode, High Voltage (Replaces: W10492276) |
|
Immediately | $ 31.37 | ||||
| 23 | W10269456 | Chassis |
|
$ 73.82 | |||||
| 24 | W11523261 | Cushion, Ntc (Replaces: W10313276) |
|
- | |||||
| 25 | W10313275 | Bracket, Top Cavity |
|
$ 32.06 | |||||
| 26 | W10240330 | Assembly, Lamp Glass And Holder |
|
$ 6.80 |
