View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts

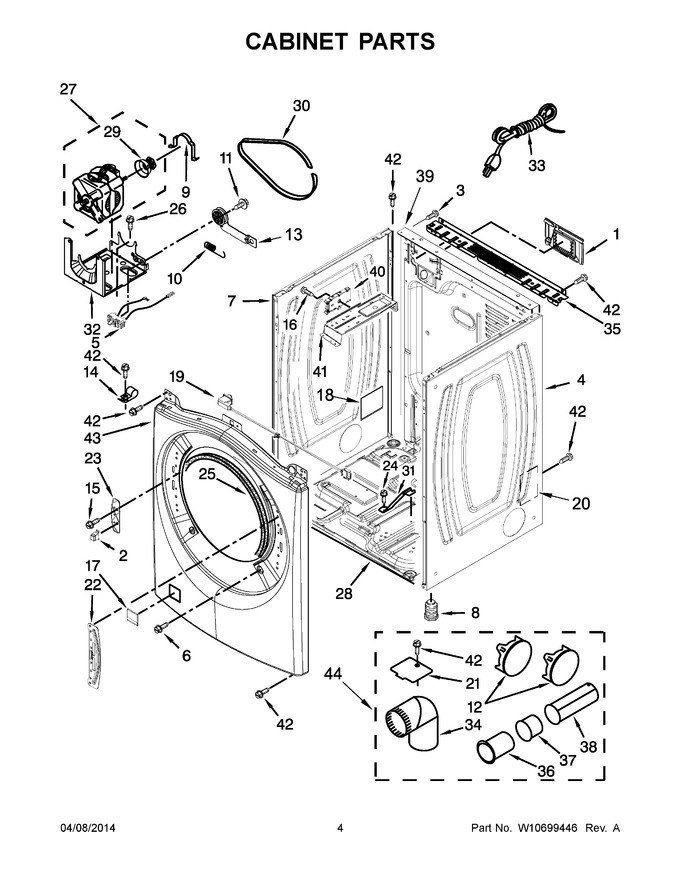

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - W10307147 Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 7.76 | |||||
| 4 | W10469592 | Panel, Side (r.h.) (silver) |
|
- | |||||
| 4 | W11310043 | Panel, Side (r.h.) (white) (Replaces: W10469589) |
|
$ 293.46 | |||||
| 4 | W11321018 | Panel, Side (r.h.) (chrome Shadow) (Replaces: W10474189) |
|
$ 295.95 | |||||
| 4 | W10628277 | Panel, Side (r.h.) (black) |
|
- | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 26.90 | ||||
| 6 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | WPW10468499 | Panel, Side (l.h.) (silver) (Replaces: W10468499) |
|
$ 333.78 | |||||
| 7 | W10628249 | Panel, Side (l.h.) (black) |
|
$ 263.12 | |||||
| 7 | W11315726 | Panel, Side (l.h.) (chrome Shadow) (Replaces: W10468496) |
|
Immediately | $ 306.32 | ||||
| 7 | W11233548 | Panel, Side (l.h.) (white) (Replaces: W10468495) |
|
$ 248.89 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 71.98 | |||||
| 13 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 16 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 17 | W10249704 | Plug, Front Panel (silver) |
|
- | |||||
| 17 | W10391496 | Plug, Front Panel (chrome Shadow) |
|
- | |||||
| 17 | 8573008 | Plug, Front Panel (black) |
|
- | |||||
| 17 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 15.71 | |||||
| 18 | W10123956 | Panel, Dampening |
|
- | |||||
| 19 | WPW10350906 | Assembly, Door Switch (Replaces: W10350906) |
|
Immediately | $ 77.61 | ||||
| 20 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 22.63 | |||||
| 21 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 8.96 | |||||
| 22 | W10208218 | Bracket, Door Hinge |
|
$ 15.16 | |||||
| 23 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 41.77 | |||||
| 24 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 25 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 26 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 27 | W11511154 | Assembly, Motor (Replaces: W10620755) |
|
Immediately | $ 269.07 | ||||
| 28 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 347.96 | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 87.83 | ||||
| 33 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 97.05 | |||||
| 34 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 26.82 | |||||
| 35 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 91.38 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 78.95 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 88.80 | |||||
| 39 | W10487430 | Panel, Rear |
|
Immediately | $ 340.11 | ||||
| 40 | WPW10654006 | Board, Control (Replaces: W10654006) |
|
Immediately | $ 283.38 | ||||
| 41 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 42 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 43 | WPW10463309 | Front Panel (includes Door Hinge Bracket) (chrome Shadow) (Replaces: W10463309) |
|
$ 338.08 | |||||
| 43 | W10363953 | Front Panel (includes Door Hinge Bracket) (white) |
|
$ 182.23 | |||||
| 43 | W10433063 | Front Panel (includes Door Hinge Bracket) (black) (Replaces: W10433061) |
|
$ 802.42 | |||||
| 43 | WPW10460923 | Front Panel (includes Door Hinge Bracket) (silver) (Replaces: W10460923) |
|
$ 519.89 | |||||
| 44 | W10323246 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent |
|
Immediately | $ 85.68 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
