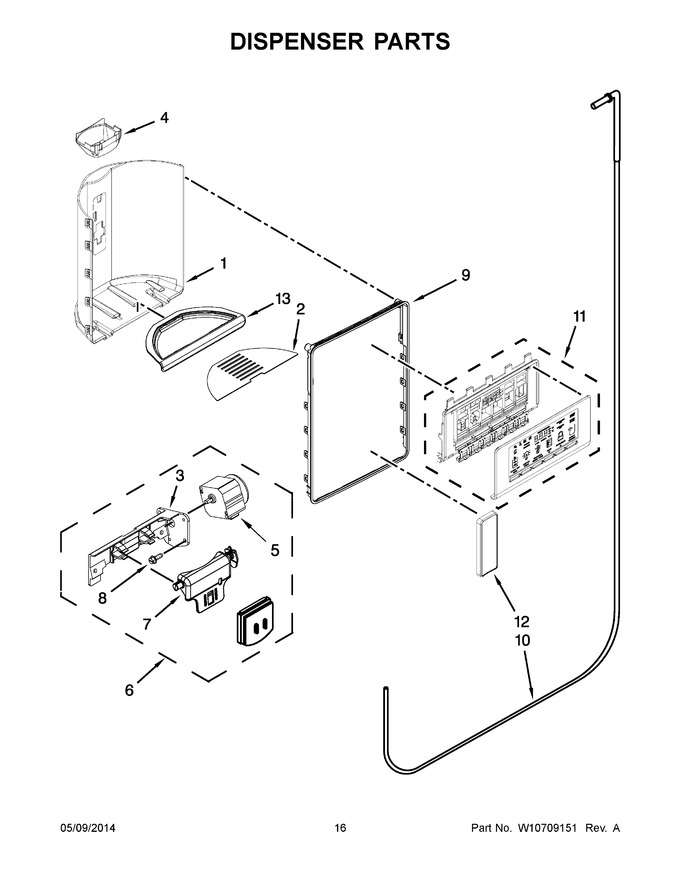

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276209 | Grate, Drip Tray (Replaces: W10276209) |
|
$ 73.40 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 68.78 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 93.71 | |||||
| 6 | W10838126 | Assembly, Separator (Replaces: W10493171) |
|
$ 147.90 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 37.67 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.18 | |||||
| 9 | W10448931 | Trim Ring (chromium Frost) |
|
- | |||||
| 10 | W11619800 | Tube, Water (Replaces: W10238091) |
|
$ 81.63 | |||||
| 11 | W11027664 | Electronic Control Assembly (Replaces: W10388236) |
|
$ 261.42 | |||||
| 12 | WPW10370594 | Pad Assembly- Water & Ice (grey) (Replaces: W10370594) |
|
$ 279.55 | |||||
| 13 | W10276225 | Drip Tray (satina) |
|
$ 66.65 |
