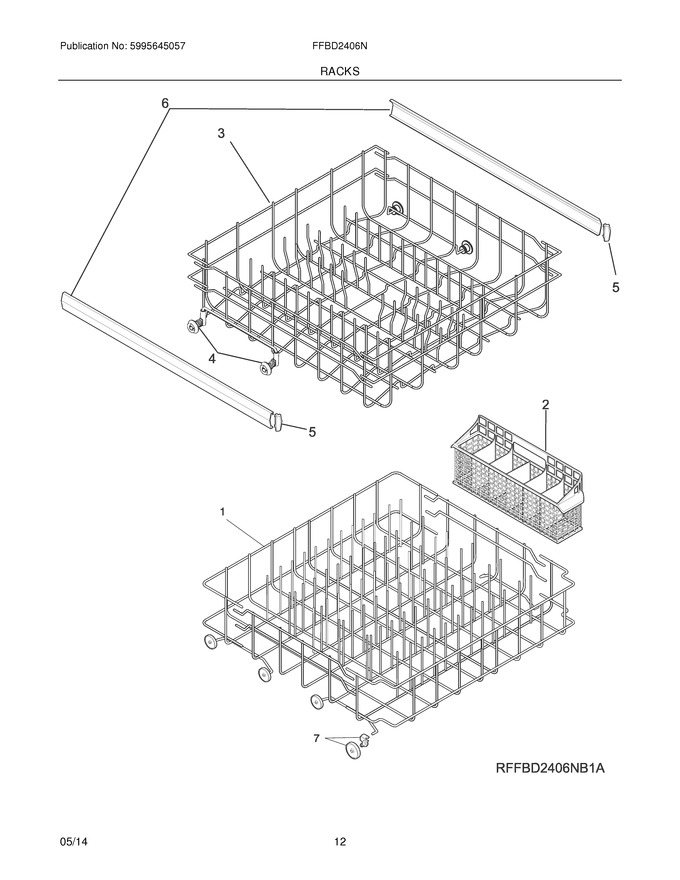

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535379 | Rack Assy,lower (Replaces: 154331605) |
|
Immediately | $ 138.64 | ||||
| 2 | 5304509753 | Basket,silverware ,white (Replaces: 5304489877) |
|
Immediately | $ 40.97 | ||||
| 3 | 5304535380 | Rack Assy,upper (Replaces: 154331502) |
|
Immediately | $ 167.45 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,grey ,upper Rack ,(8) |
|
$ 43.93 | |||||
| 5 | 5304506510 | Cap,slide ,grey ,(4) (Replaces: 5304440996) |
|
Immediately | $ 8.03 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,grey ,lower Rack ,(8) (Replaces: 154174503) |
|
Immediately | $ 14.17 | ||||
| NI | 154818702 | Nameplate,rack Spacer ,grey |
|
$ 11.29 |
