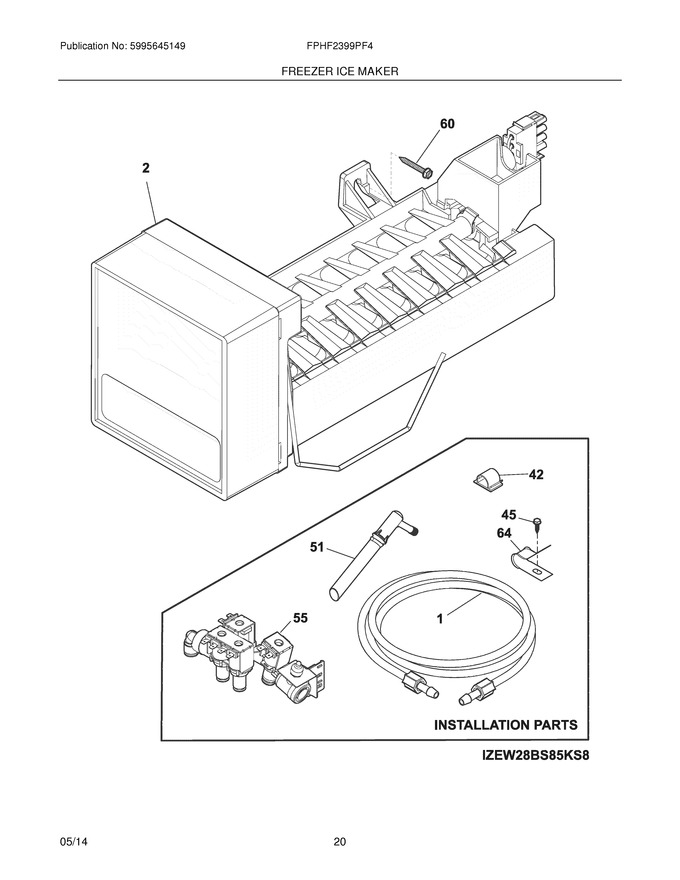

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet,5/16 - 59`` ,yellow ,cd |
|
$ 22.84 | |||||
| 2 | 5303918493 | Ice Maker,radius Cube ,115 V ,service (Replaces: 241798219) |
|
Immediately | $ 257.72 | ||||
| 42 | 218515401 | Clip-grille |
|
$ 19.69 | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 51 | 242159302 | Tube-water Fill, Extension,51 |
|
$ 23.63 | |||||
| 60 | 5304455852 | Screw,hex Washer Head ,8-15a X 1.000 ,(2) (Replaces: 5303207328) |
|
$ 14.18 | |||||
| 64 | 5304455846 | Clamp,0.31 Id ,steel ,copper Wtr Line (Replaces: 5303001549) |
|
$ 11.81 | |||||
| F55 | 242253002 | Valve-water,quad Solenoid |
|
Immediately | $ 271.94 | ||||
| NI | 5303918571 | Tube-water,ice Mold Fill ,black ,extension (Replaces: 241844403) |
|
$ 182.49 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NI | 241503901 | Connector-water,straight ,5/16 To 1/4 |
|
$ 56.91 | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 26.78 | ||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 241964707 | Tube-water,1/4 - 36`` ,green |
|
Immediately | $ 20.48 | ||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 67.41 | ||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 7.09 |
