View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

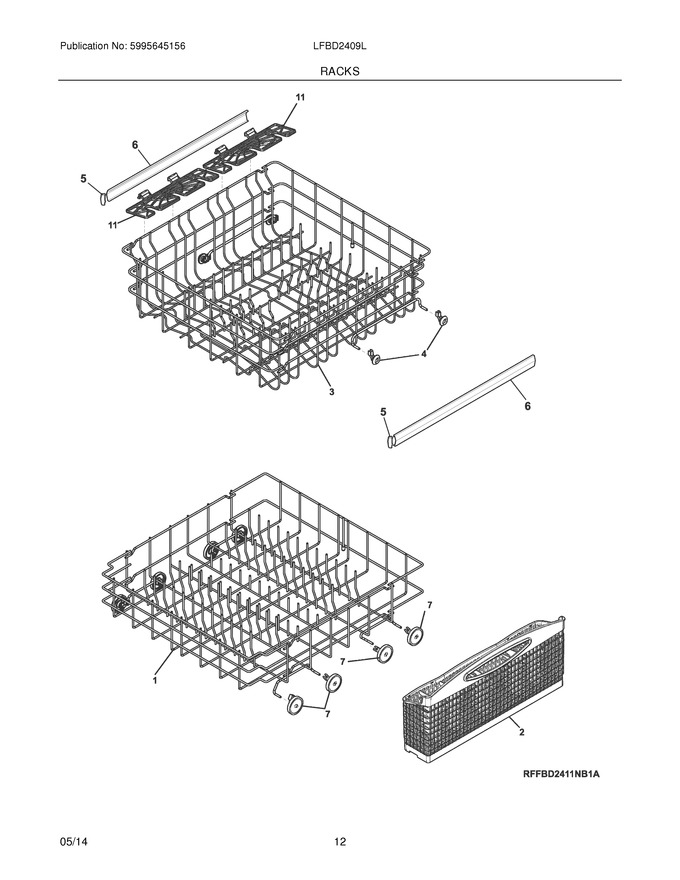

| 1 | 5304535768 | Rack Assembly,lower (Replaces: 808602302) |
|
Immediately | $ 180.68 | ||||
| 2 | 5304535382 | Basket,silverware ,grey (Replaces: 154556102) |
|
Immediately | $ 28.25 | ||||
| 3 | 140229954072 | Rack Assembly,upper (Replaces: 808602002) |
|
Immediately | $ 161.25 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,grey ,upper Rack ,(8) |
|
$ 43.93 | |||||
| 5 | 5304506510 | Cap,slide ,grey ,(4) (Replaces: 5304440996) |
|
Immediately | $ 8.03 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,grey ,lower Rack ,(8) (Replaces: 154174503) |
|
Immediately | $ 14.17 | ||||
| 11 | 5304532945 | Shelf,cup ,half Width ,gray (Replaces: 154793904) |
|
Immediately | $ 8.24 | ||||
| NI | 154818702 | Nameplate,rack Spacer ,grey |
|
$ 11.29 |
