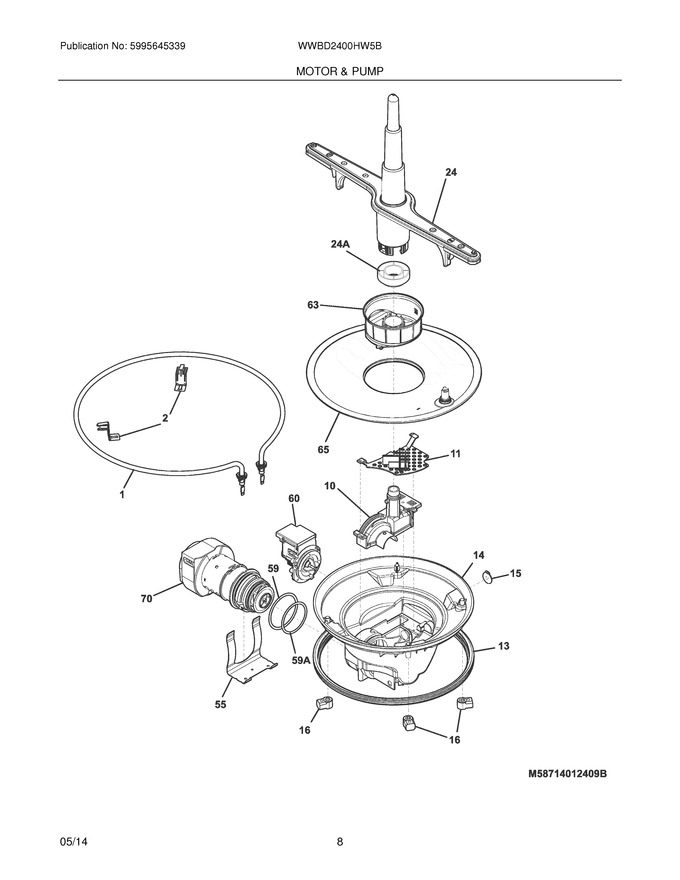

09 - Motor & Pump


11 - Frame


13 - Racks


14 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154465101		Bracket,heater ,(2)			Immediately	$ 12.60
10	807114001		Cover,volute				$ 19.04
11	807111601		Plate,pump Inlet			Immediately	$ 19.69
13	154246801		Gasket,sump				$ 57.97
14	807185501		Housing,sump				$ 75.60
15	807048001		Flapper,valve			Immediately	$ 9.89
16	154246502		Retainer,sump			Immediately	$ 44.89
24	5304518927		Spray Arm,light Grey ,lower ,w/heat Shield   (Replaces: 154567702)			Immediately	$ 52.22
30	154241101		Retainer,thermostat				$ 4.02
55	5304534830		Bracket,motor   (Replaces: 154595901)				$ 6.16
59	154246901		O-ring,rear			Immediately	$ 63.00
63	5304532205		Base,soil Director ,w/filter   (Replaces: 154775401)			Immediately	$ 15.27
65	140281806020		Filter,polypro   (Replaces: 154252401)			Immediately	$ 9.83
24A	154335201		Nut,spray Arm			Immediately	$ 49.00
59A	154247001		O-ring,front			Immediately	$ 63.00
F1	154825001		Heater,round			Immediately	$ 101.32
F29	154227811		Thermostat,hi Temp Wash				$ 28.92
F60	A00126401		Drain Pump Assy   (Replaces: 5304492415)			Immediately	$ 158.89
F70	807473201		Motor & Pump Assy,w/o-rings				$ 288.17
NI	154741501		Screw,drain Motor Mtg ,(3)				$ 14.96
NI	154289801		Shield,heater Terminal				$ 7.33
NI	154106202		Nut,heater ,(2)			Immediately	$ 20.35
NI	154380601		Clamp,hose ,1.5`` Open ,worm Gear ,(5)				$ 81.90
NI	154297701		Screw,retainer-thermo				$ 14.96
NI	154779601		Screw,ph ,8-10 ,(2)				$ 1.58
NI	154754901		Screw,sump Mtg ,8-16 ,(4)			Immediately	$ 4.73
NI	154783101		Screw,plt ,8-10				$ 7.88
