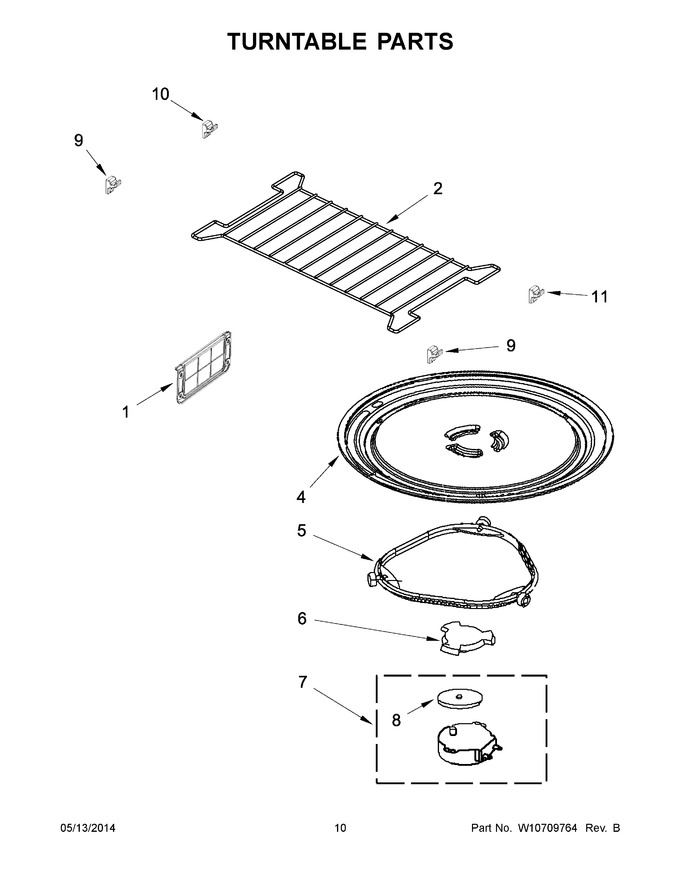

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10245224 | Cover, Inlet Mica |
|
$ 67.17 | |||||
| 2 | WPW10447234 | Rack, Microwave (Replaces: W10447234) |
|
$ 18.16 | |||||
| 4 | W11367904 | Turntable (Replaces: W10337247) |
|
Immediately | $ 77.07 | ||||
| 5 | W11252182 | Ring, Turntable (with Rollers) (Replaces: W10435114) |
|
Immediately | $ 37.37 | ||||
| 6 | W10337248 | Driver, Turntable |
|
Immediately | $ 7.40 | ||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 53.48 | ||||
| 8 | W11381953 | Plate, Waterproof (Replaces: W10269467) |
|
- | |||||
| 9 | W10840759 | Hook, Microwave Rack (front) (Replaces: W10245207) |
|
- | |||||
| 10 | W10840794 | Hook, Microwave Rack (left Rear) (Replaces: W10245208) |
|
$ 22.28 | |||||
| 11 | W10840795 | Hook, Microwave Rack (right Rear) (Replaces: W10245209) |
|
$ 23.44 |
